GLC1239 Adjustable Buck Converter Circuit Multi Voltage Module is a compact and versatile DC-DC step-down module, perfect for electronics projects, prototyping, and power management applications. Built around the reliable LM2596 IC, this module efficiently converts higher input voltages to adjustable lower output voltages, providing precise power control for your circuits.
Features:
Wide Input Voltage Range: Operates with 5V to 15V input, suitable for various power sources.
Adjustable Output Voltage: Output can be varied from 0.8V to 12V using the onboard potentiometer.
High Current Capability: Delivers up to 3A of continuous current for powering diverse devices.

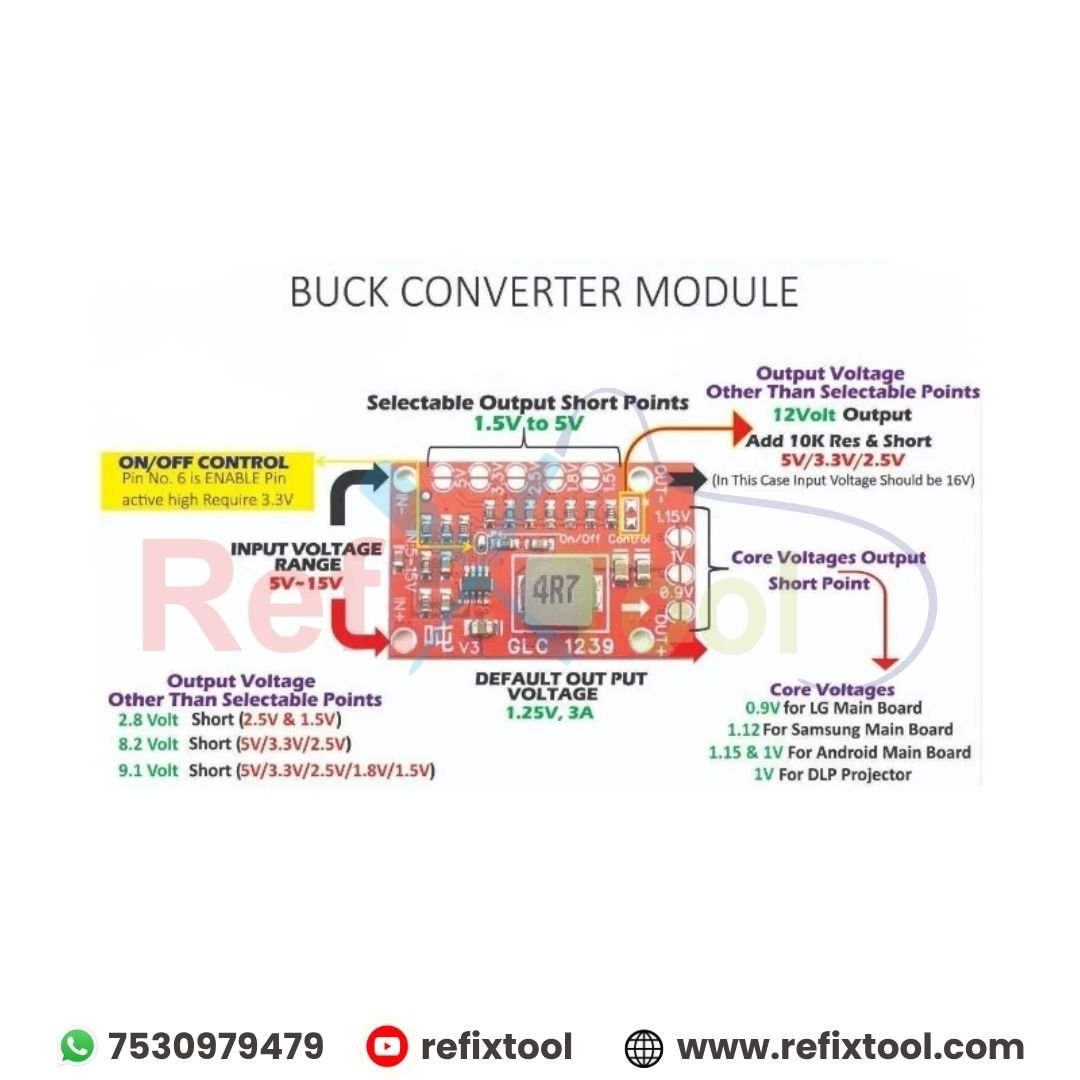

Multiple Output Options: Pre-set selectable voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and core voltages of 0.9V, 1V, 1.15V. Additional selectable points at 2.8V, 8.2V, 9.1V, and 12V.
ON/OFF Control: Convenient switch for easily controlling module power.
Compact & Reliable: Ideal for DIY electronics, robotics, and embedded systems.
Specifications:
Model No: GLC1239
Input Voltage: 5V – 15V DC
Default Output Voltage: 1.2V DC, 3A
Maximum Output Current: 3A
Packing Include:
1 x GLC1239 Adjustable Buck Converter Module
Note: No Warranty / No Guarantee / No Replacement
