Hoki 30V 10A Programmable DC Power Supply is a compact and programmable 150W DC power supply featuring a high-precision 4-digit LED display for accurate voltage, current, and power monitoring. It includes a convenient memory function to store and recall settings, along with automatic CV/CC switching for stable output. For enhanced safety, it is equipped with OVP, OCP, and short-circuit protection, complemented by a low-noise, temperature-controlled cooling fan. Its lightweight and portable design makes it an ideal choice for laboratories, electronic repairs, and industrial workshops.
Key Feature
4-Digit LED Display: Displays voltage, current, and power readings with high accuracy, ensuring clear and precise measurements.
Adjustable Output: Offers a voltage range of 0–30V and current range of 0–10A with fine and coarse adjustment for flexible settings.
Memory Function: Allows users to store and recall preferred voltage and current settings for quick operation.
Automatic CV/CC Switch: Automatically switches between constant voltage and constant current modes for stable output.
Multiple Protections: Equipped with Over-Voltage Protection (OVP), Over-Current Protection (OCP), Over-Temperature Protection (OTP), and Short-Circuit Alarm to ensure safe operation.
Temperature-Controlled Fan: Provides efficient cooling with low noise, ensuring longer service life.
Dual AC Input: Supports AC 110V/220V, making it suitable for different power sources worldwide.
Compact & Lightweight: High power density with a small footprint, perfect for labs, workshops, and on-the-go use.
Specifications:
Product Model: 305s
Output Power: 150W
Output Voltage: 0–30V
Output Current: 0–10A
Input Voltage: AC 230V/115V ±10%, 50/60Hz
Display: 0.4" Four-Digit LED
Display Accuracy: ±0.5% ± 5 digits
Display Resolution: Voltage 0.01V / Current 0.001A
Ripple Voltage: ≤0.5% Vpp
Current Stability: ±0.5% ± 3mA
Recovery Time: ≤500μs
Operating Temperature: 0°C–40°C (RH < 80%)
Storage Temperature: -10°C–70°C (RH < 70%)
Size: 190 × 90 × 145 mm
Net Weight: 1.15 kg

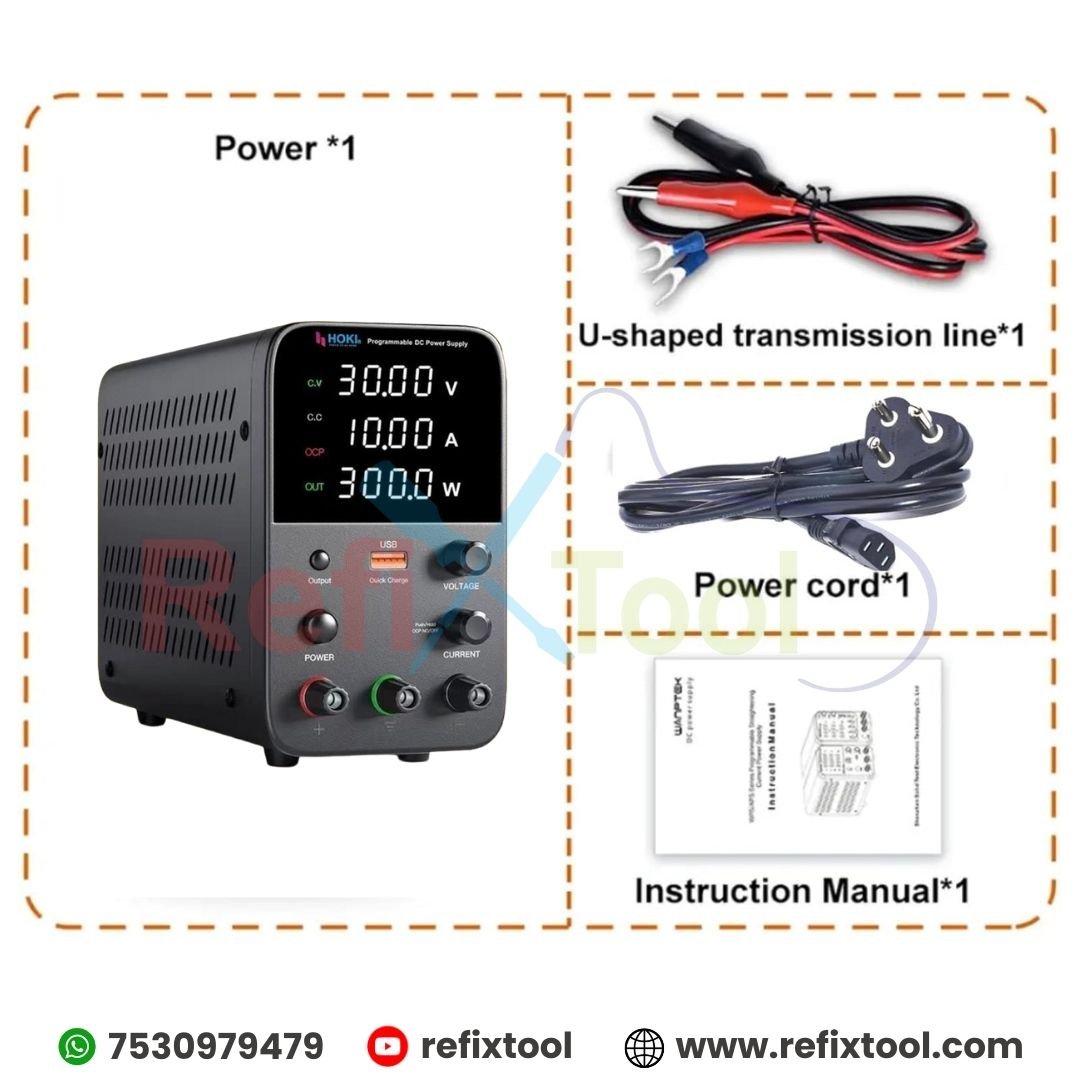

Package Includes:
1 x HOKI 30V 10A Programmable DC Power Supply
1 x Power Cable
1 x Test Cable
1 x User Manual
