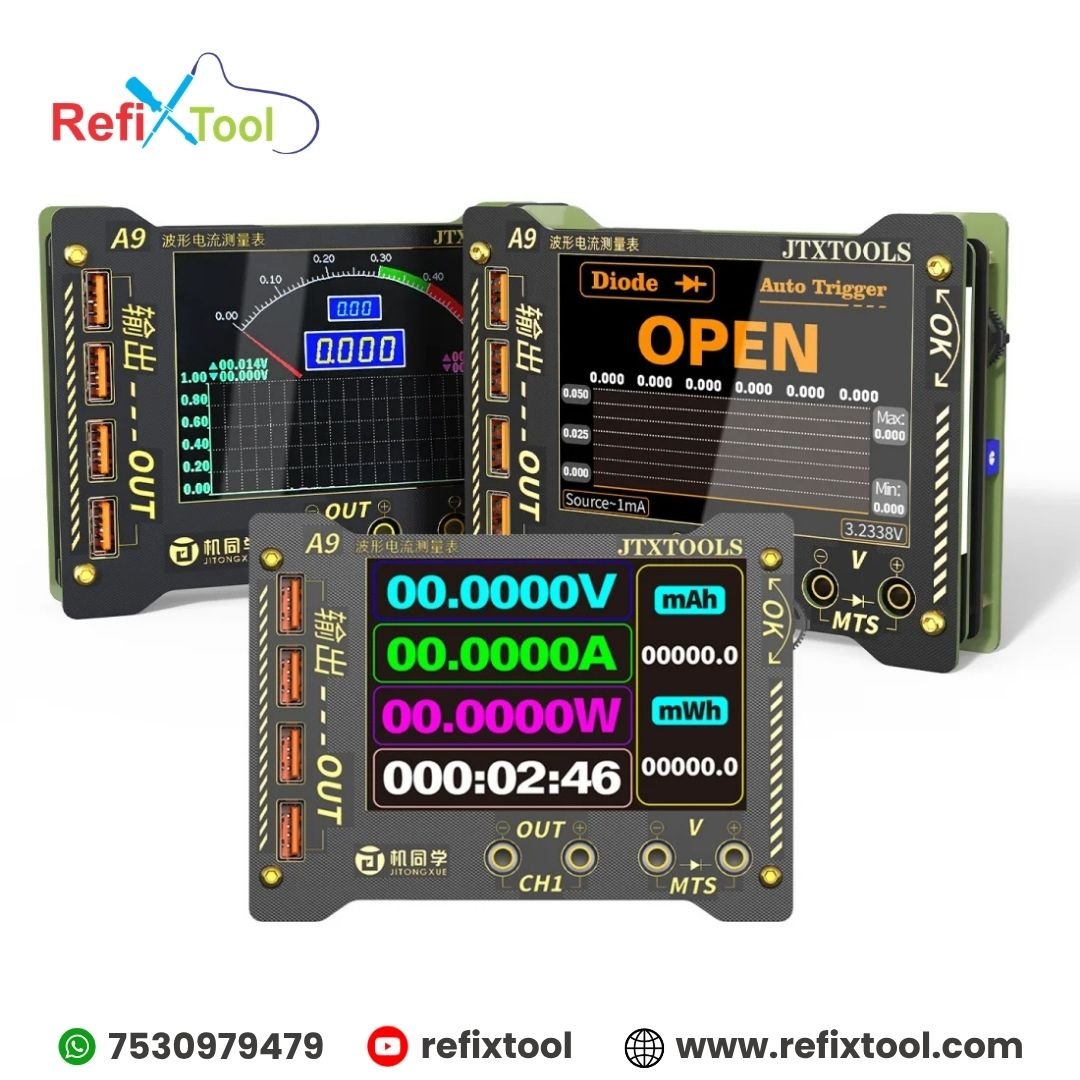

JTX A9 Waveform Multi-Function Measuring Meter Digital Multimeter with 4.0” Display designed for advanced electronics diagnostics and repair work. It combines waveform analysis, voltage and current measurement, and multimeter functions into one compact device. With its 4.0-inch display and fast sampling capability, it provides real-time insights for mobile repair, IC testing, and circuit troubleshooting.

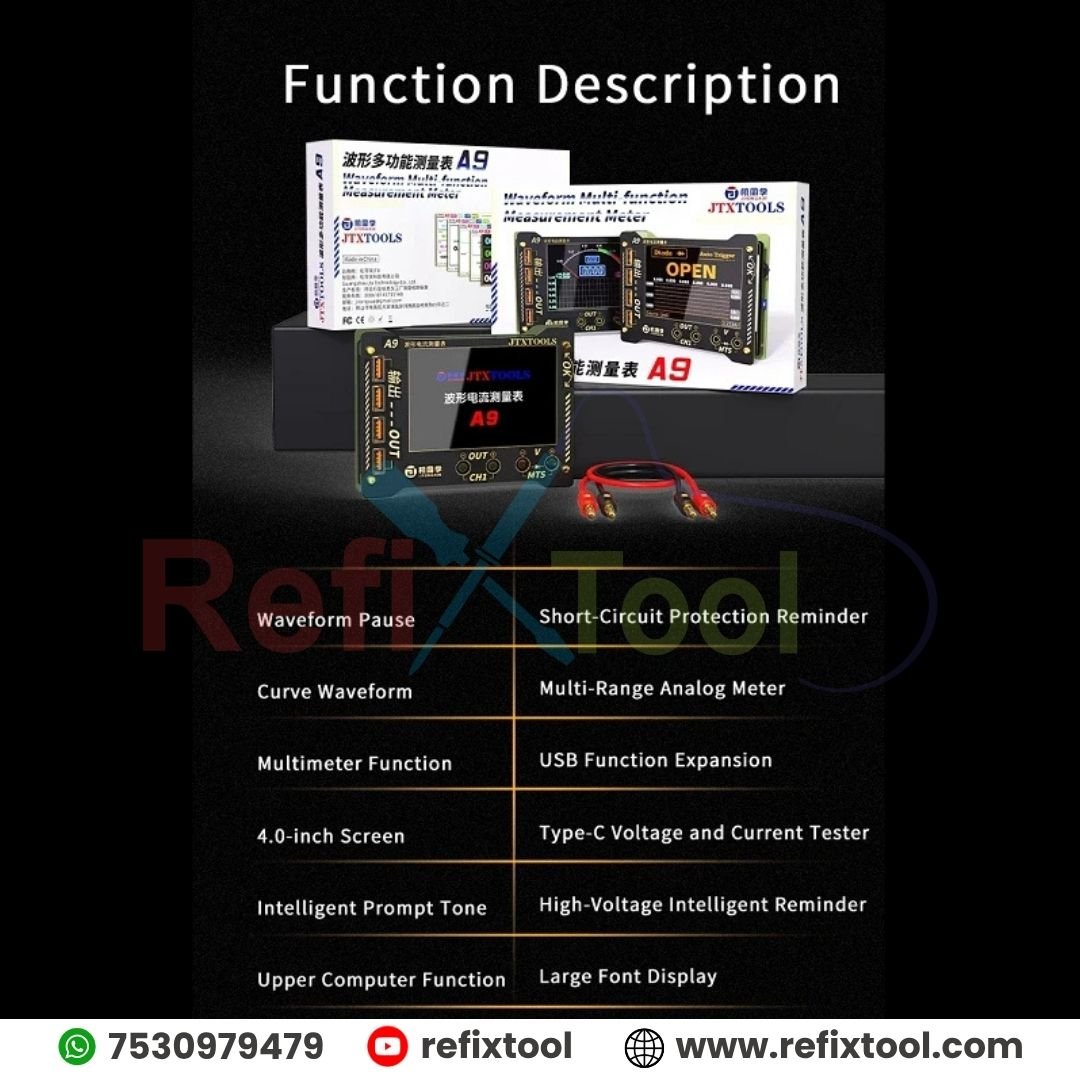

Key Features
Multi-Function Measurement: Supports voltage, current, waveform, diode testing, and multimeter functions in one device.

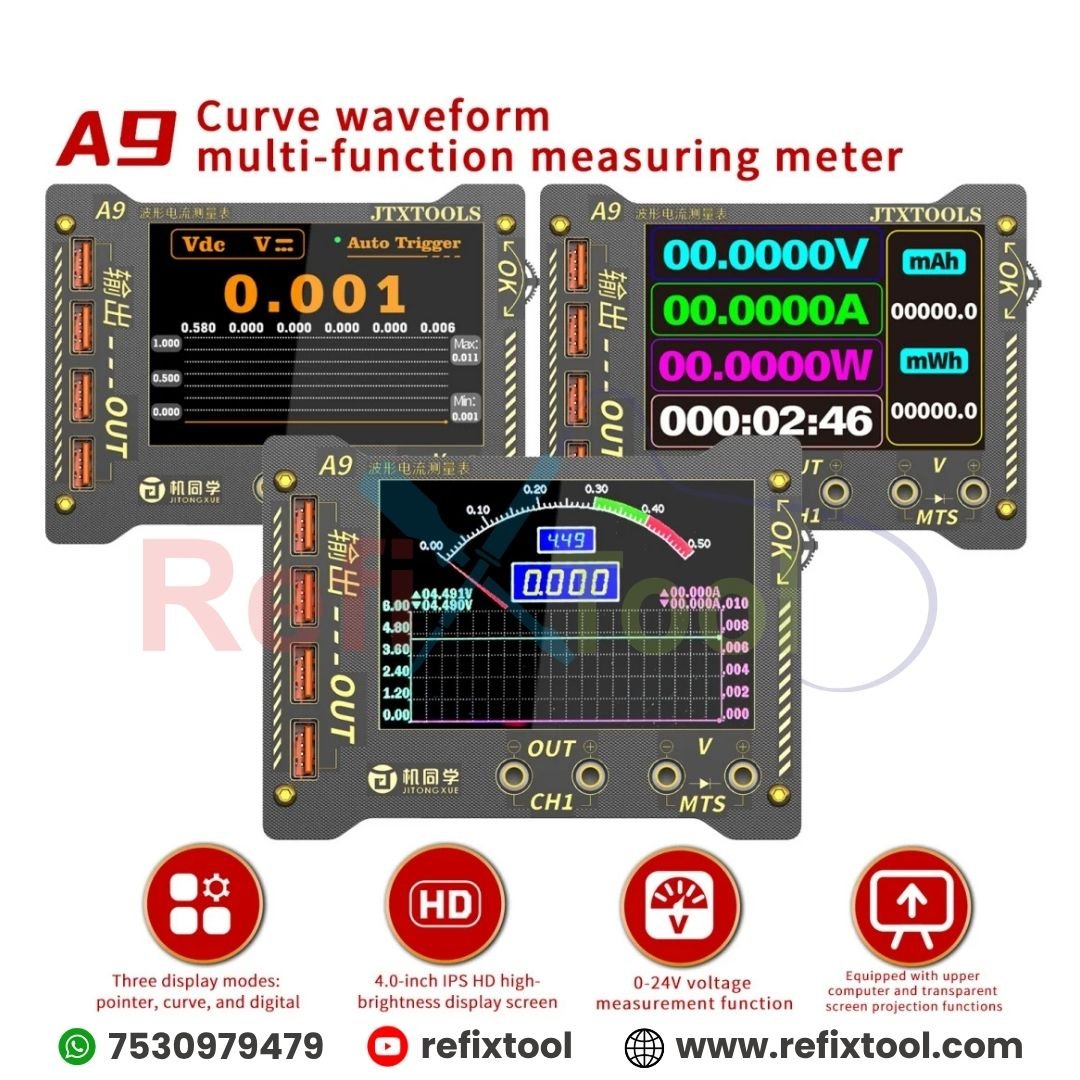

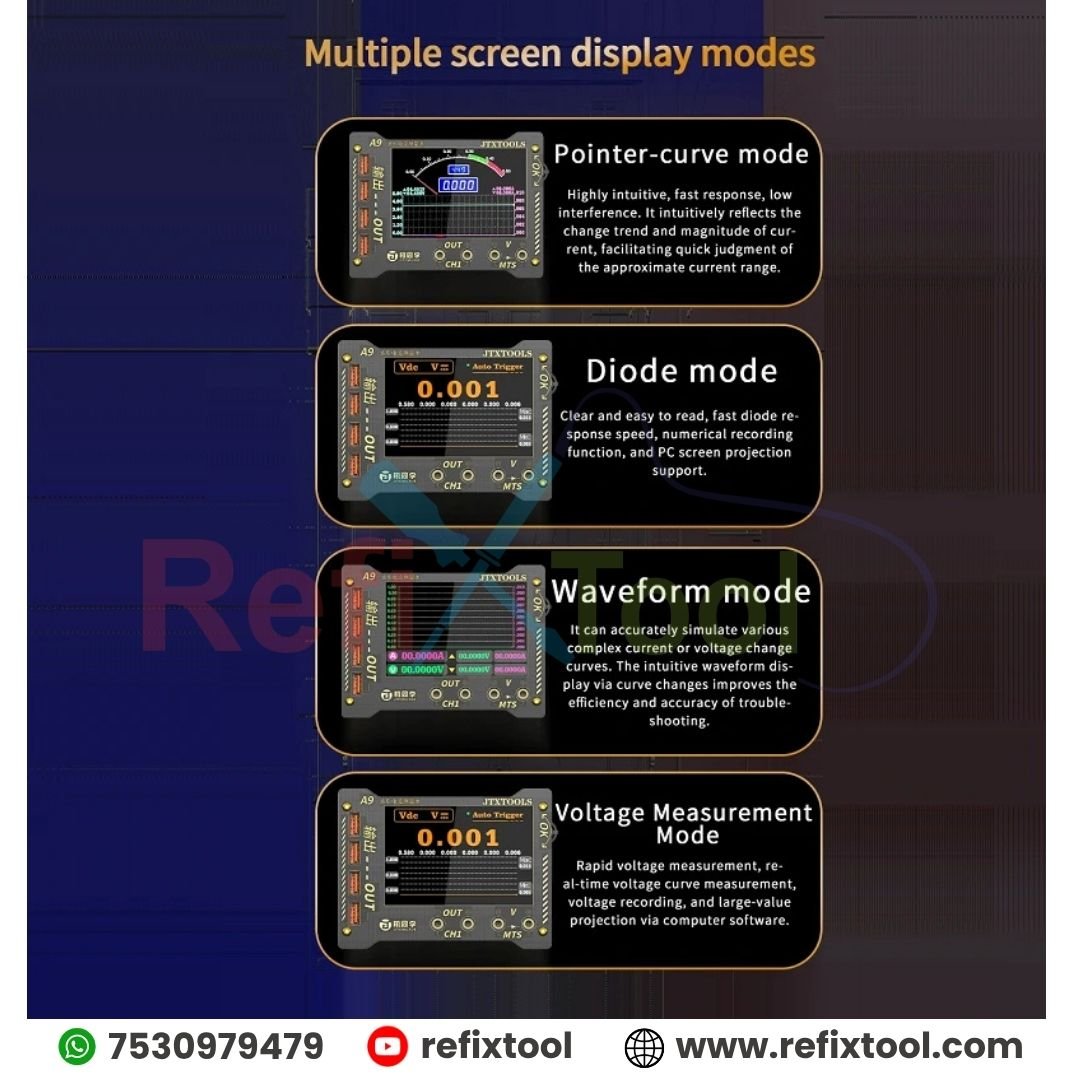

Real-Time Waveform Display: Curve waveform mode helps visualize voltage and current changes for accurate diagnostics.
High Precision Sampling: Fast and stable readings with improved accuracy for professional use.

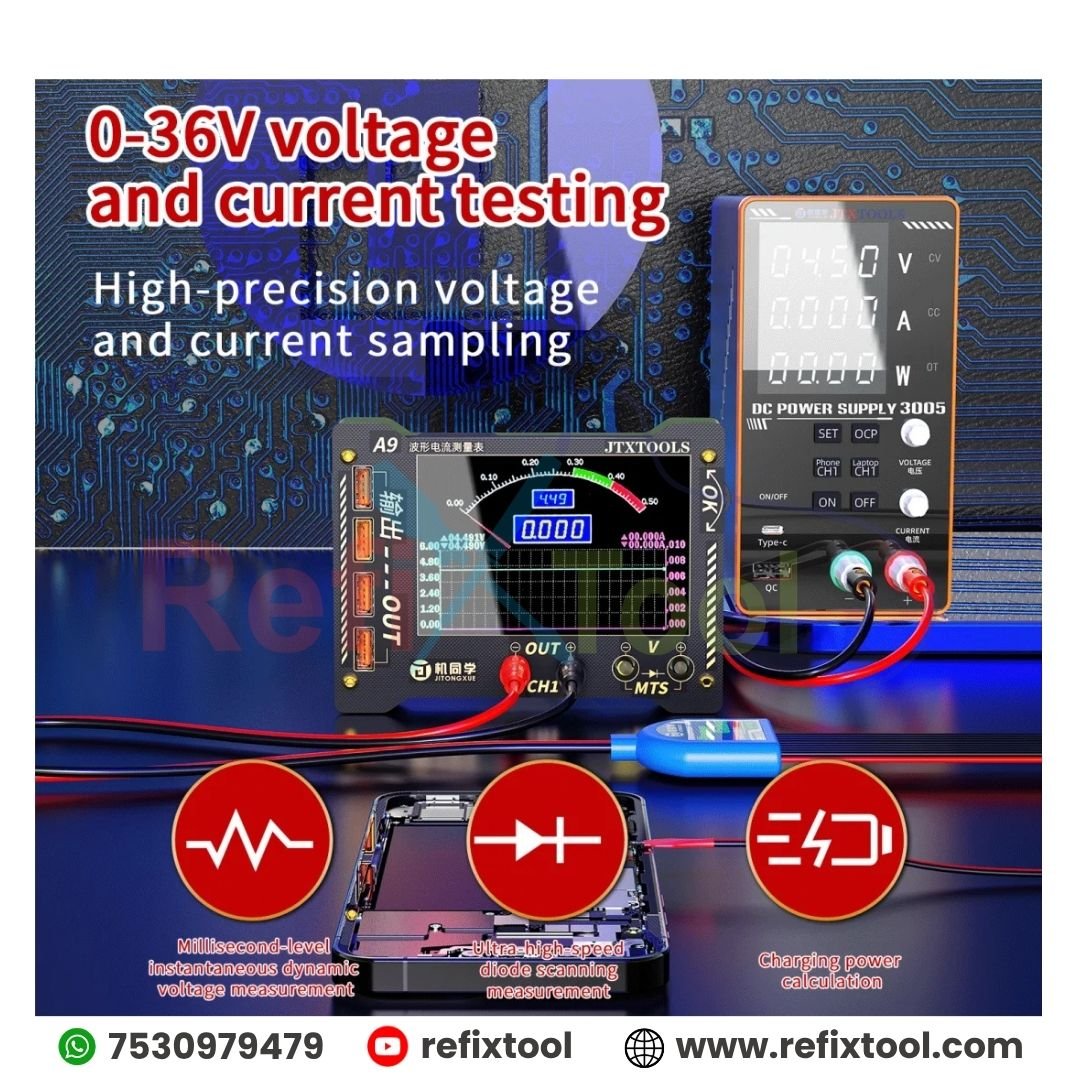

Wide Voltage Range: 0–36V measurement range suitable for mobile and electronic circuits.
Ultra-Fast Response: Millisecond-level detection with faster capture compared to traditional meters.
4.0-inch HD Display: Large screen with clear waveform visualization and wide viewing angles.

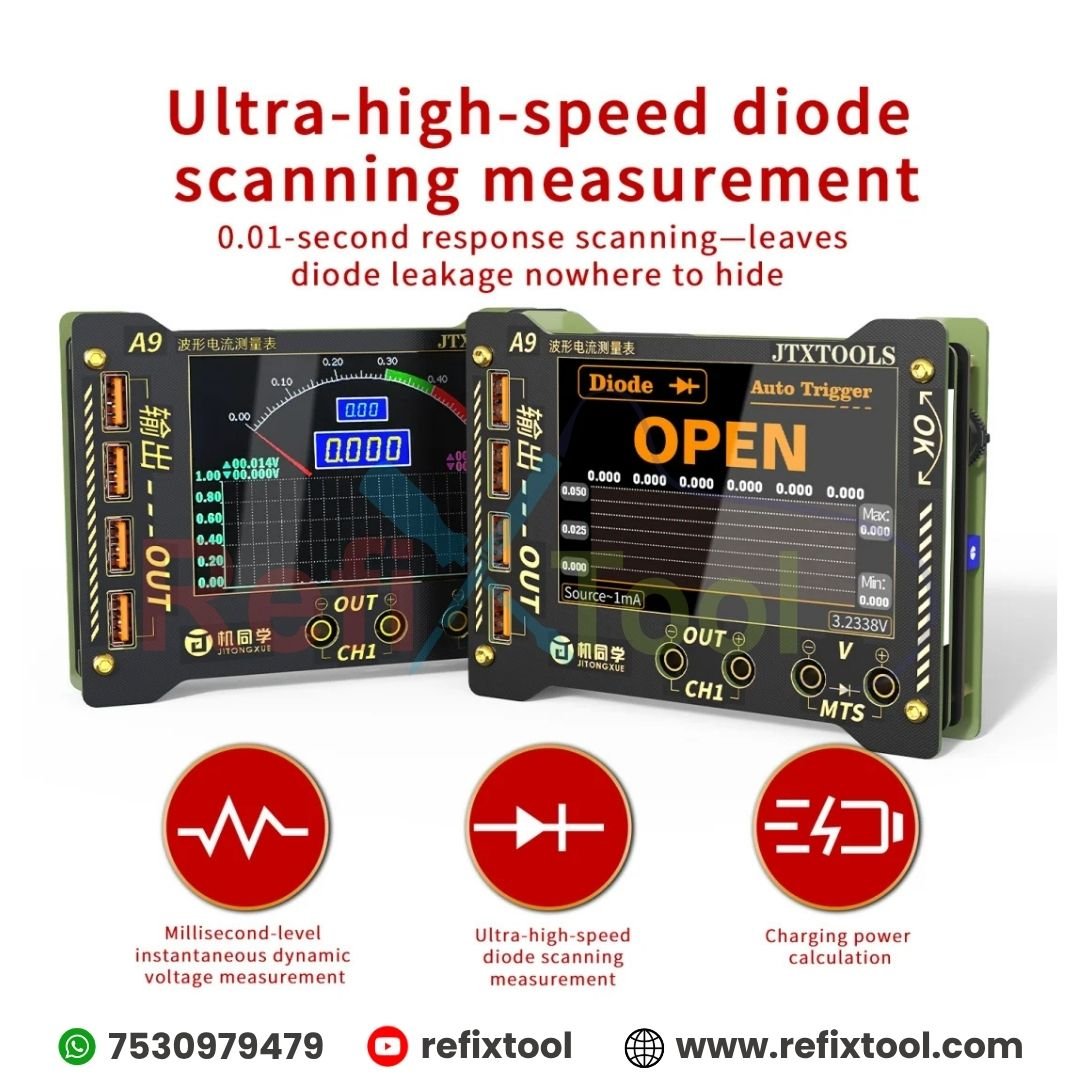

Diode Test Mode: Quick response with accurate voltage detection and leakage identification.

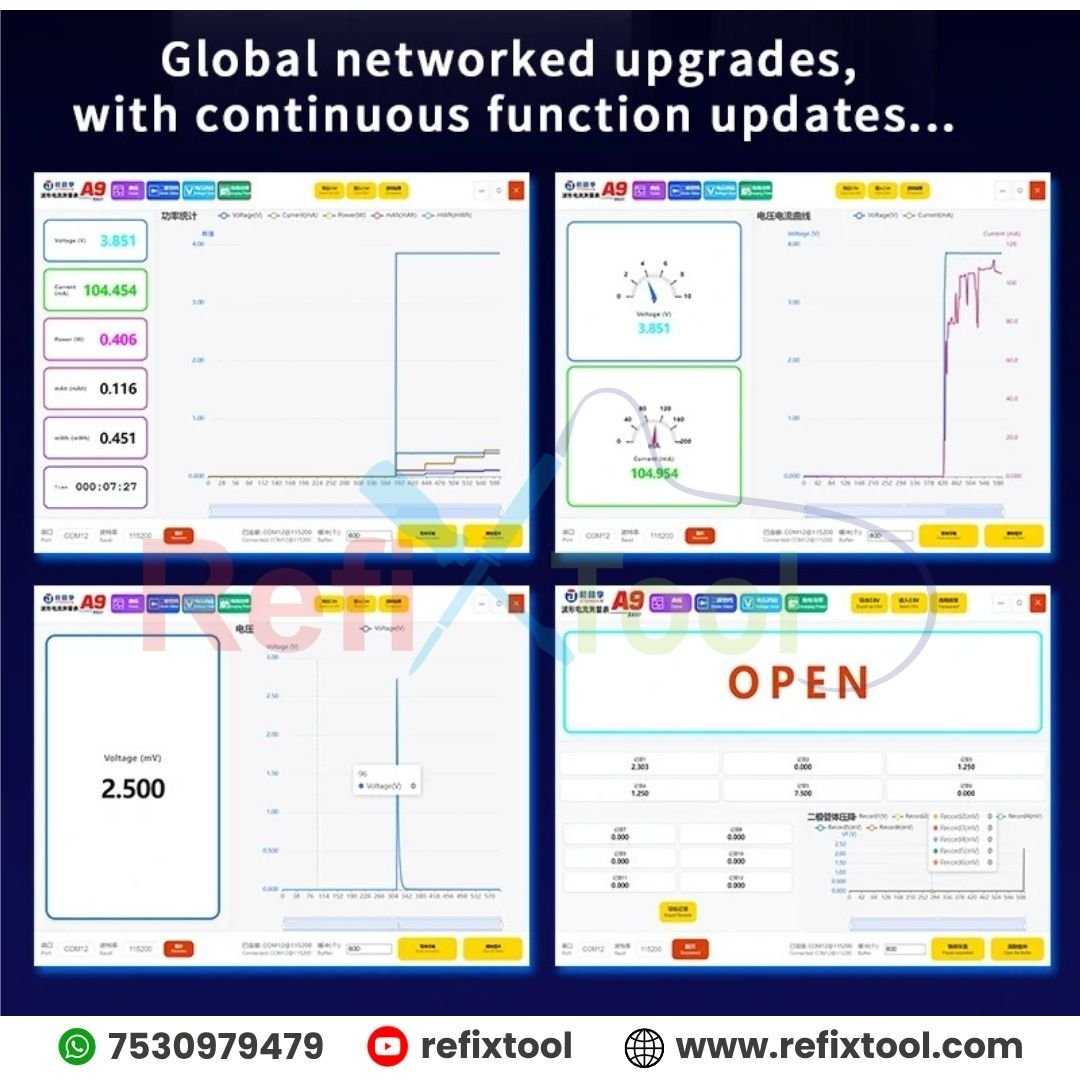

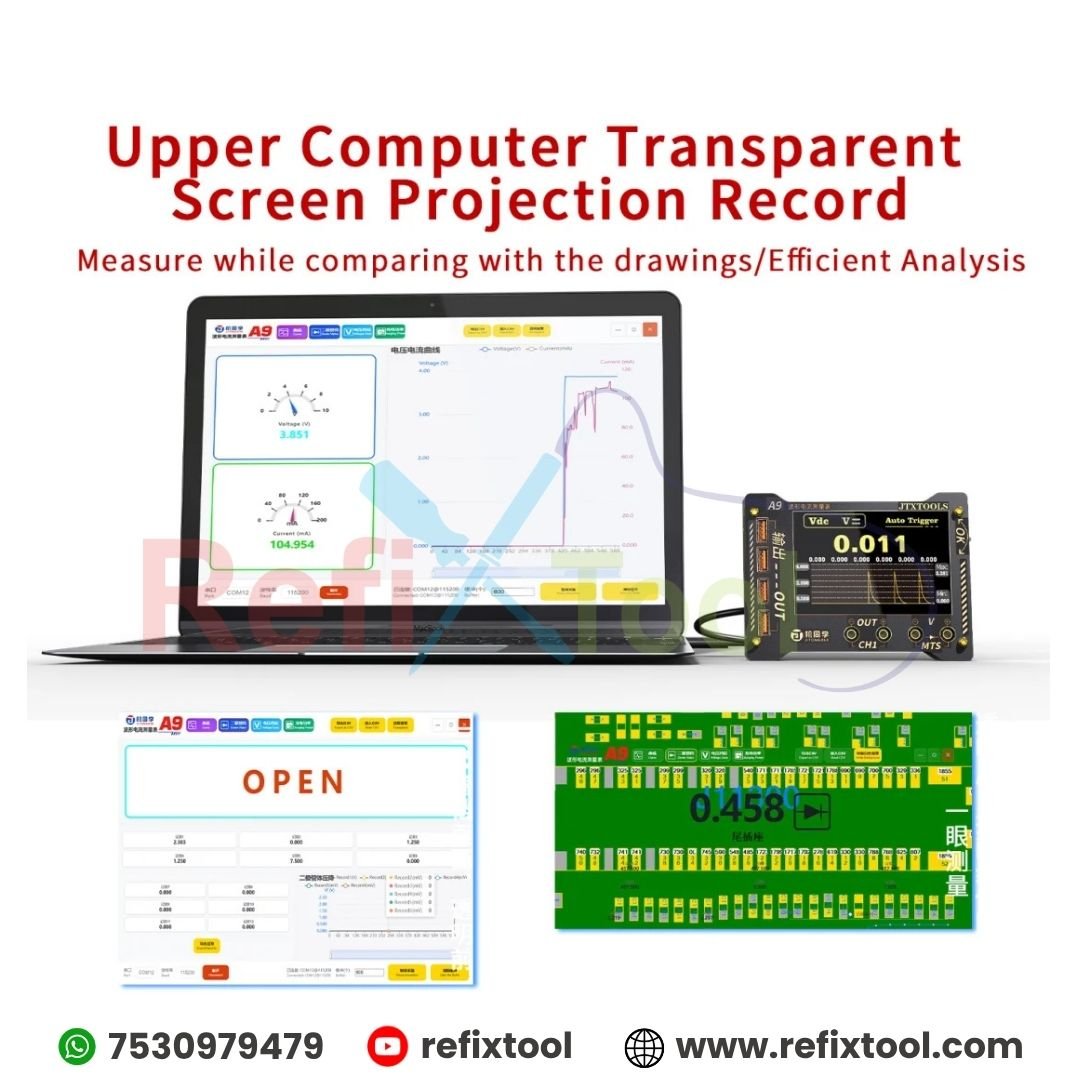

PC Connectivity Support: Screen projection and data monitoring through computer interface.
Intelligent Alerts: High-voltage warning, short-circuit reminder, and prompt tones for safety.
USB Type-C Functionality: Supports power input and extended testing capabilities.
Portable Design: Compact and lightweight for easy use in repair labs or on-site work.
Specifications
Brand: JTX
Model: A9
Product Type: Waveform Multi-Function Measuring Meter
Input Voltage: DC 0–36V
Detection Current: 0–8A
Current Accuracy: 0.5mA
Voltage Resolution: 1mV
Current Resolution: 0.1mA
Protection Voltage: <60V
Protection Current: <15A
Screen Size: 4.0 inches
Screen Resolution: 320 × 480
Power Supply: 5V 2A (Type-C)
Diode Test Output: 0–2.8V
Banana Plug Rating: 40V / 8A
Package Includes
1 × JTX A9 Measuring Meter
1 × Test Leads / Probes
1 × USB Type-C Power Cable
1 × User Manual
