Mechanic L144 USB Adjustable Microscope Ring Light Source (144 LED) is a high-brightness illumination accessory designed for stereo microscopes used in electronics repair, inspection, and precision work. Equipped with 144 LEDs, it provides bright, uniform lighting that improves visibility when working on small components such as IC chips, PCB traces, and micro solder joints.
With 0–100% adjustable brightness and a convenient USB power interface, the L144 ring light is compatible with most standard binocular and trinocular microscopes, making it an essential lighting upgrade for professional repair workstations.
Key Features
144 High-Brightness LEDs: Delivers powerful illumination with brightness ranging from 32,000 to 36,000 lux, ensuring clear visibility of tiny components and detailed structures.
Adjustable Brightness Control: Brightness can be smoothly adjusted from 0% to 100% using the built-in control knob to suit different working conditions.
Uniform White Light Output: Produces stable white light with a color temperature of 6500K–7500K, ideal for precision observation and inspection.

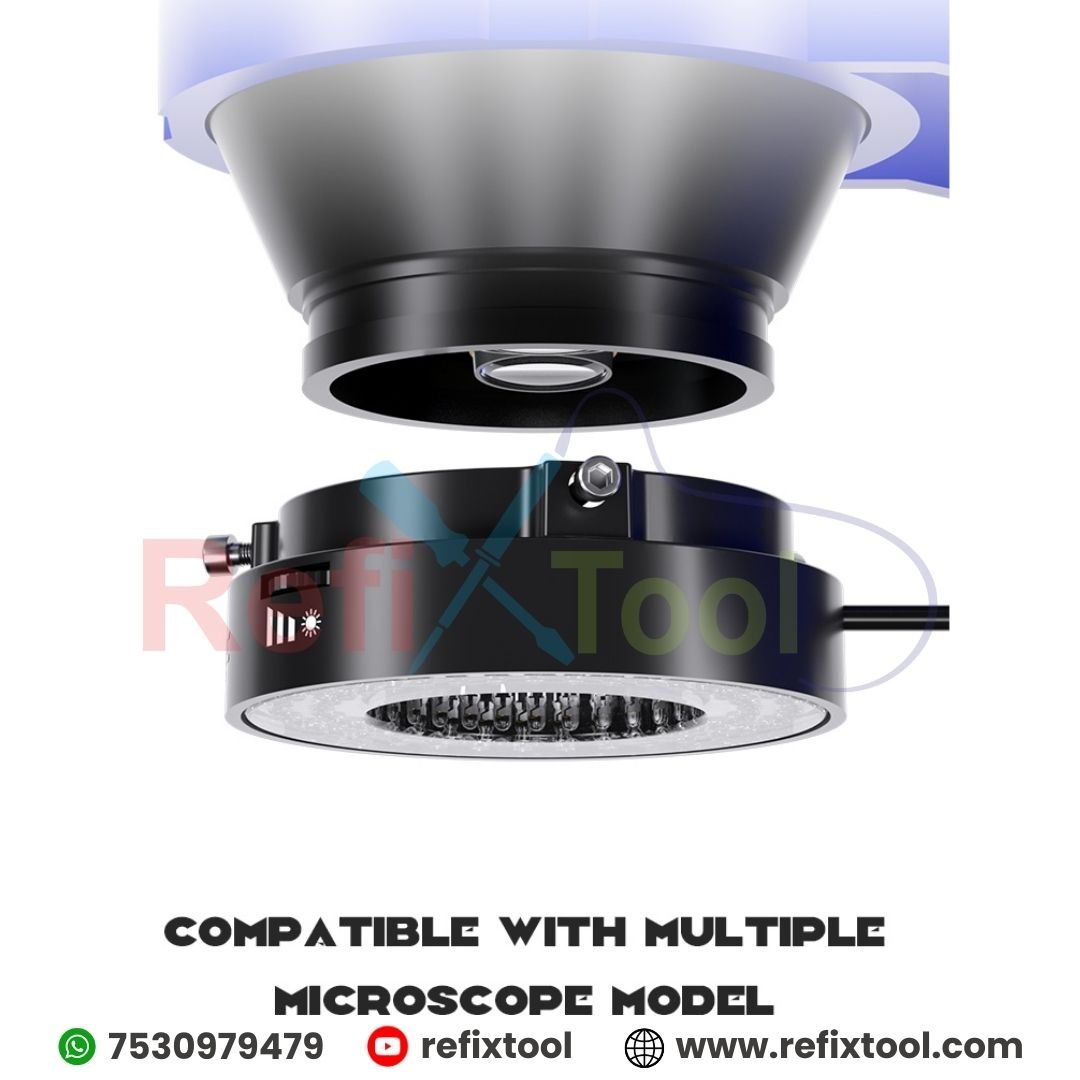

Wide Microscope Compatibility: Designed to fit microscope objective lenses with an inner diameter range of 23.5mm to 63.5mm, making it compatible with most stereo microscopes.

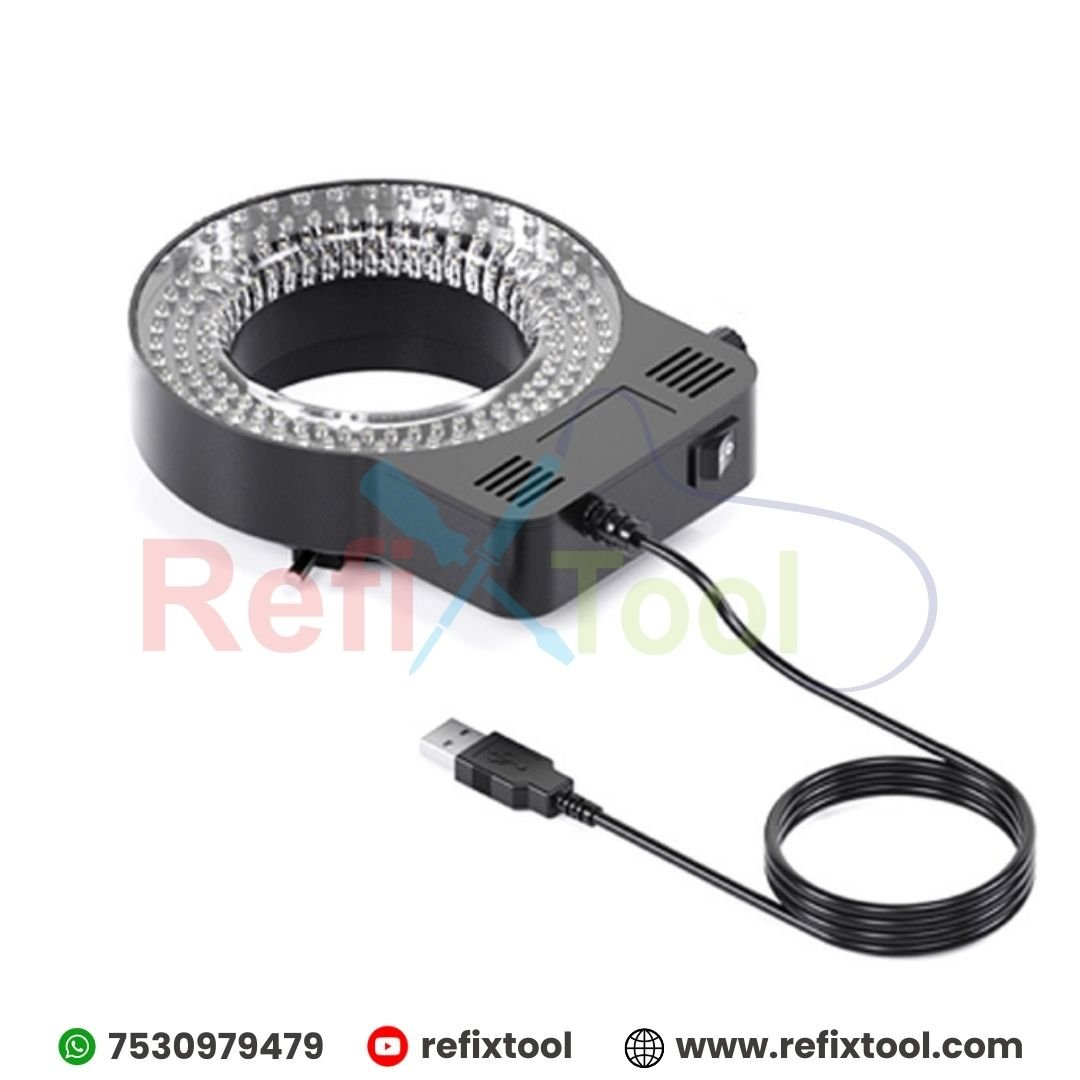

USB Power Supply: USB interface allows convenient power supply from USB adapters, power banks, or computers.
Compact & Lightweight Design: Small and efficient ring design fits neatly around the microscope lens without obstructing the working area.

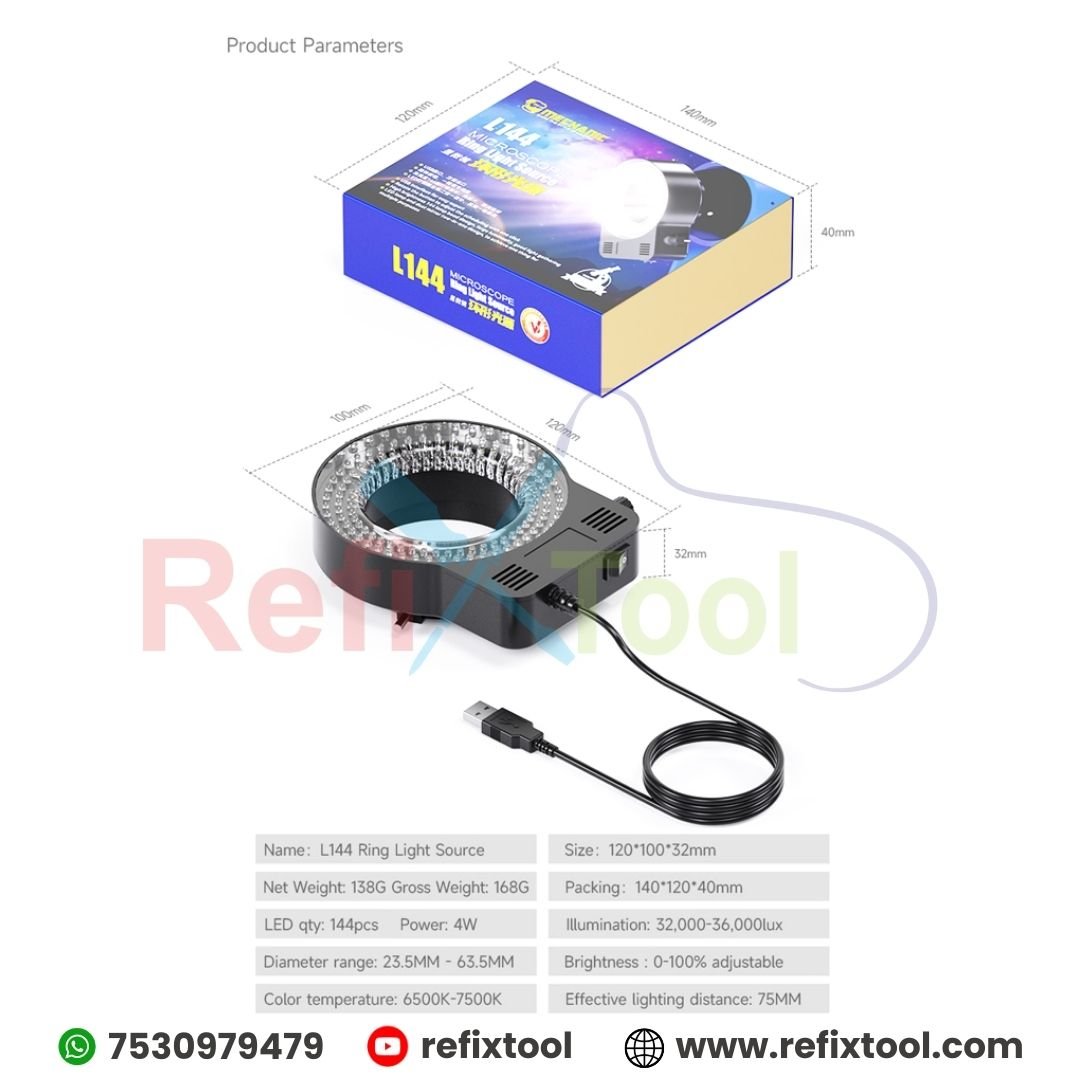

Specifications
Brand: Mechanic
Model: L144
Product Type: Microscope Ring Light Source
LED Quantity: 144 LEDs
Power Consumption: 4W
Illumination: 32,000 – 36,000 lux
Brightness Adjustment: 0–100% adjustable
Color Temperature: 6500K – 7500K
Diameter Range: 23.5 mm – 63.5 mm
Power Interface: USB
Product Size: 120 × 100 × 32 mm
Effective Working Distance: Approx. 75 mm
Package Includes
1 × Mechanic L144 Microscope Ring Light Source
