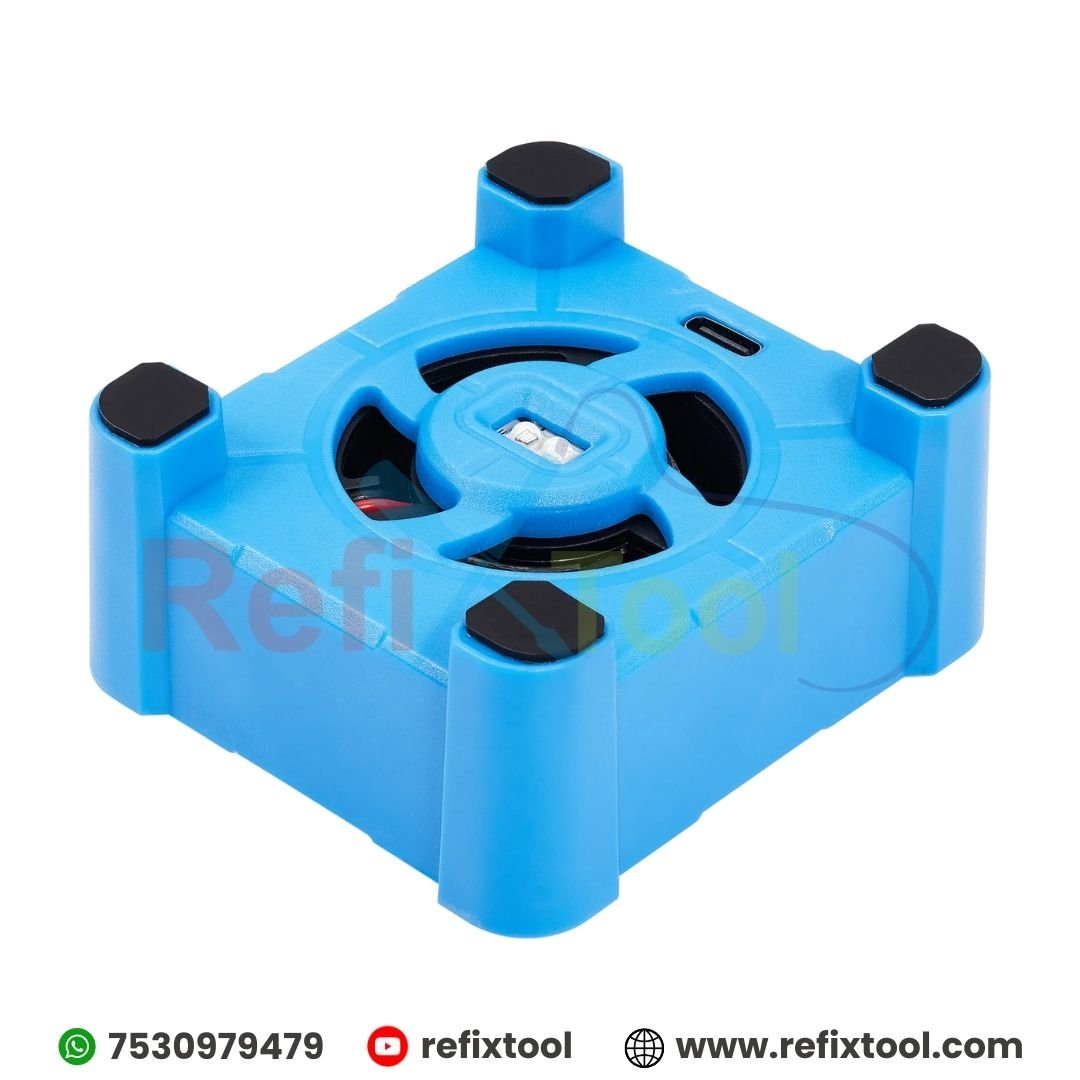

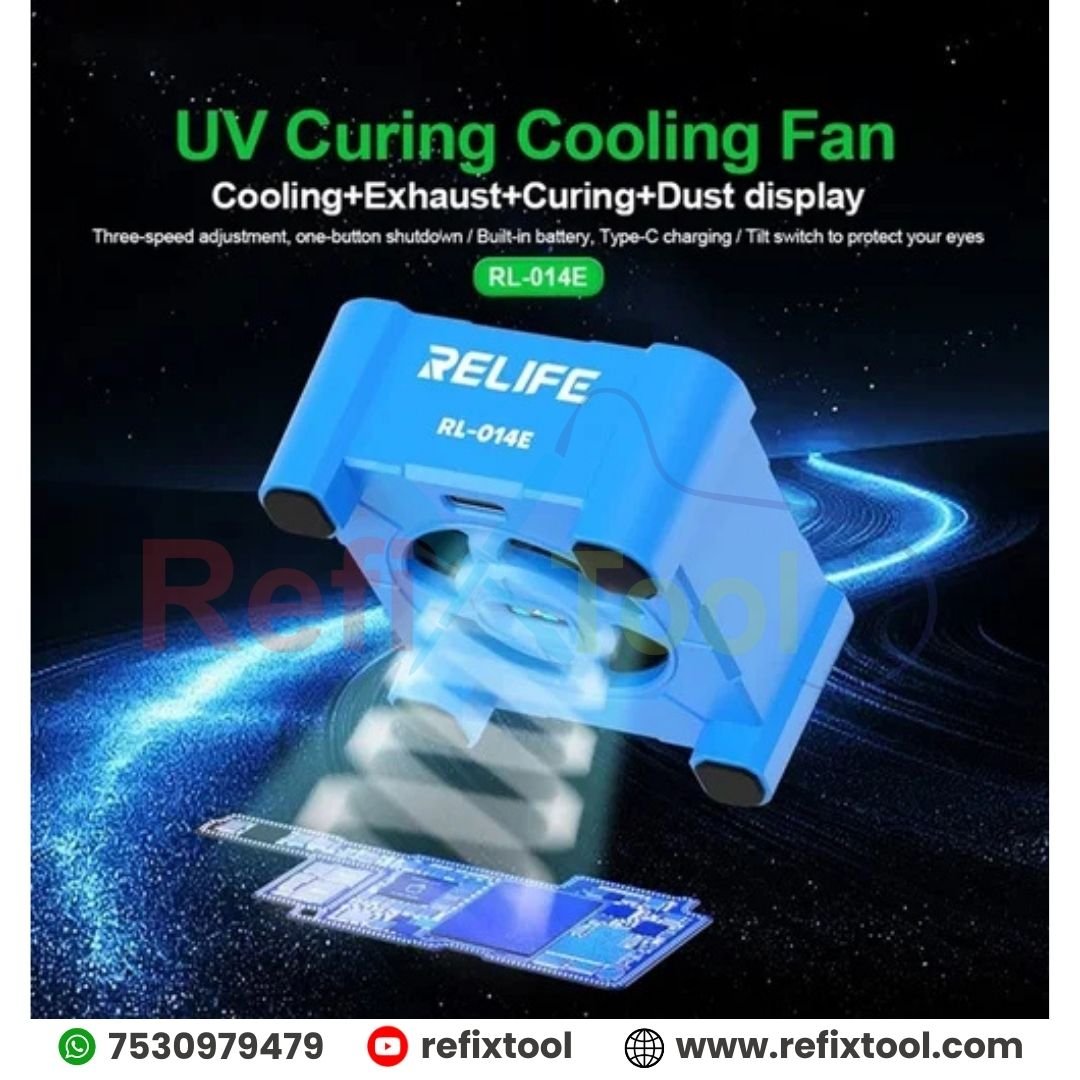

Relife RL-014E UV Curing Cooling Fan with Smoke Exhaust & Dust Display is a compact, multi-functional repair tool designed for professional mobile phone and electronics technicians. This advanced unit integrates cooling, smoke exhaust, UV curing, and dust display into one lightweight, cordless device—helping speed up repair work while maintaining a safer and cleaner workspace.
Key Features

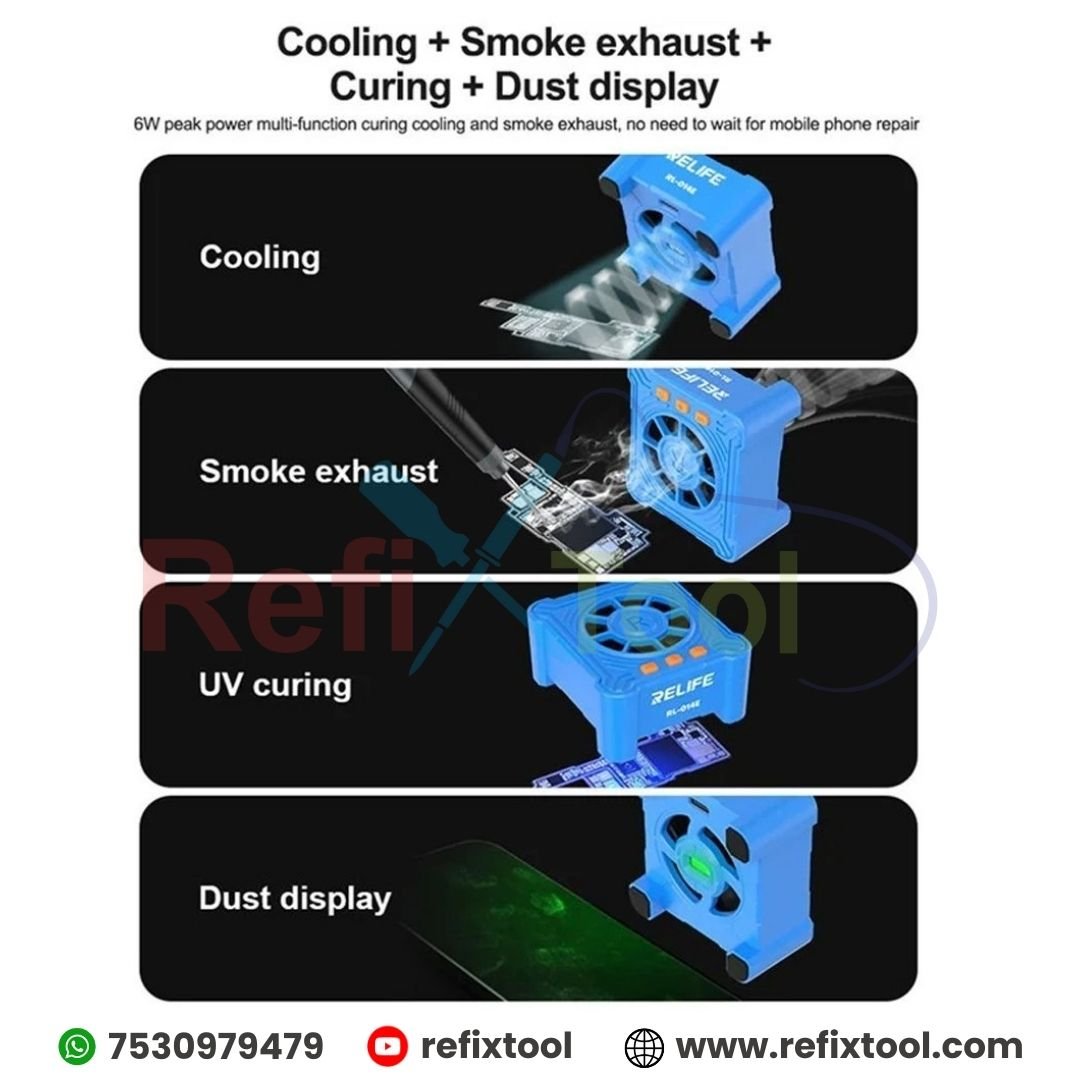

All-in-One Multi-Function Design: Combines cooling, smoke exhaust, UV curing, and dust display in a single device with up to 6W peak power, eliminating the need for multiple tools during mobile repairs.
Eye-Safe Internal UV Curing: Equipped with high-quality dual SMD lamp beads and a built-in tilt switch protection system. UV curing activates safely inside the unit, reducing direct UV exposure and protecting the technician’s eyes.
High-Speed Cooling with 3-Speed Adjustment: Features a powerful fan reaching up to 12000 RPM, with three adjustable speed levels for efficient heat dissipation and smoke exhaust during soldering or curing tasks.

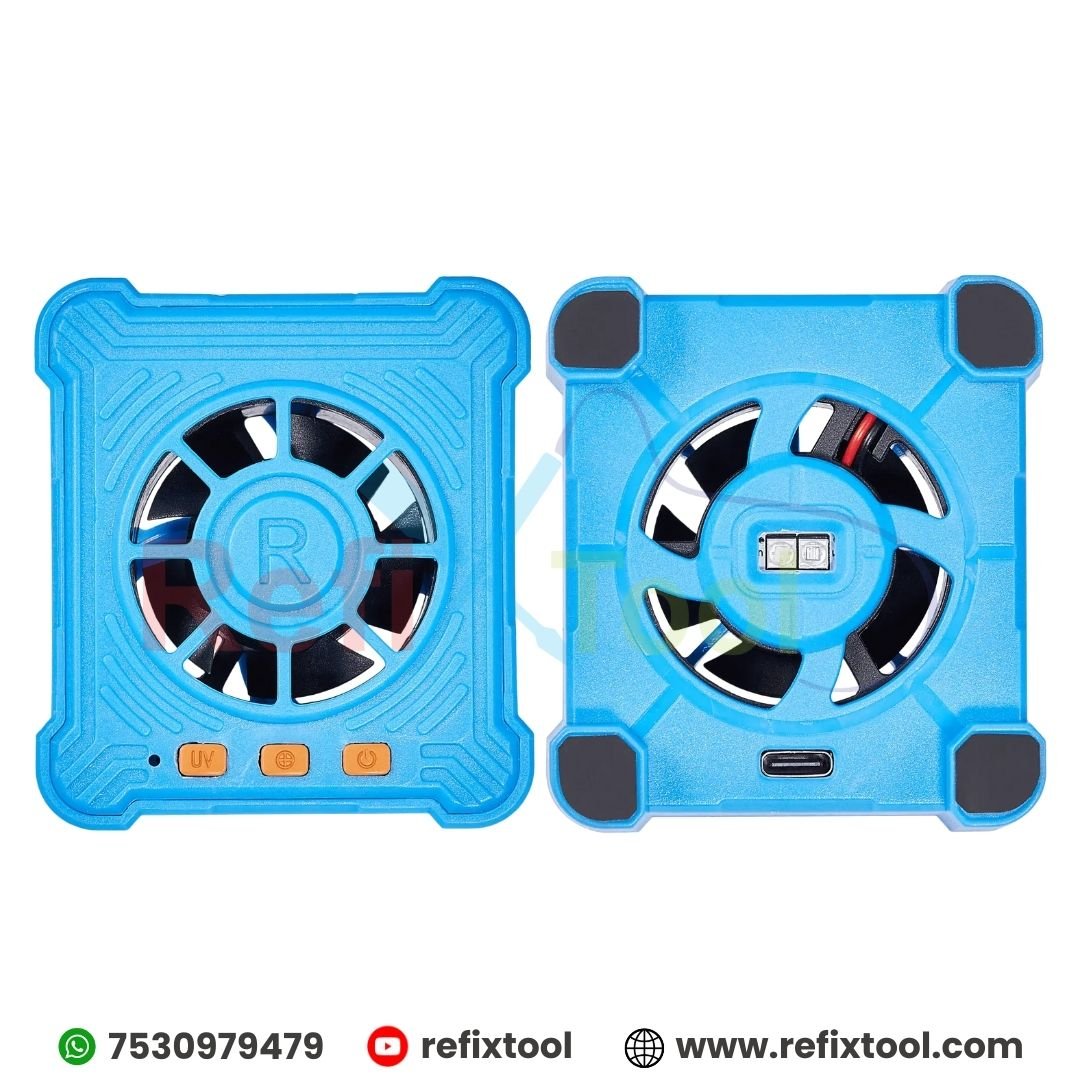

One-Button Operation: Simple one-button shutdown and speed control design ensures easy handling and quick operation during busy repair work.
Fast Type-C Charging & Long Battery Life: Built-in rechargeable battery with Type-C charging provides fast charging and reliable cordless use for extended repair sessions.
Lightweight & Portable: Weighing only around 80g, the compact body fits comfortably in one hand, making it perfect for wireless, on-the-go use.
“M” Protective Cover Design: Special protective cover improves safety during operation and prevents accidental contact, ensuring a more secure user experience.
Dual Lamp Bead Structure: High-quality double UV lamp beads offer stable, efficient, and long-lasting curing performance.
Specifications
Brand: RELIFE
Model: RL-014E
Product Name: UV Curing Cooling Fan
Functions: Cooling, smoke exhaust, UV curing, dust display
Net Weight: Approx. 80g
Product Size: 62.5 × 62.5 × 32.5 mm
Packing Size: 64 × 73.5 × 35.5 mm
Peak Power: 6W
Charging Voltage: DC 5V ± 0.5V
Charging Current: 480mA
Charging Time: 2 – 2.5 hours
UV Wavelength: 365–395nm
Green Light Wavelength: 515–535nm
Lamp Beads: Dual SMD LEDs
Battery Capacity: 700mAh
Fan Speed Levels: 3 levels (50% / 80% / 100%)
Package Includes
1 × Relife RL-014E UV Curing Cooling Fan
