Relife XA3 Pro Multi-function Type-C USB Intelligent Detector is a professional-grade USB intelligent detector designed for real-time testing, analysis, and monitoring of USB/Type-C devices, chargers, laptops, and mobile phones. It supports multiple fast-charging protocols and delivers high-precision data on voltage, current, power, and more.

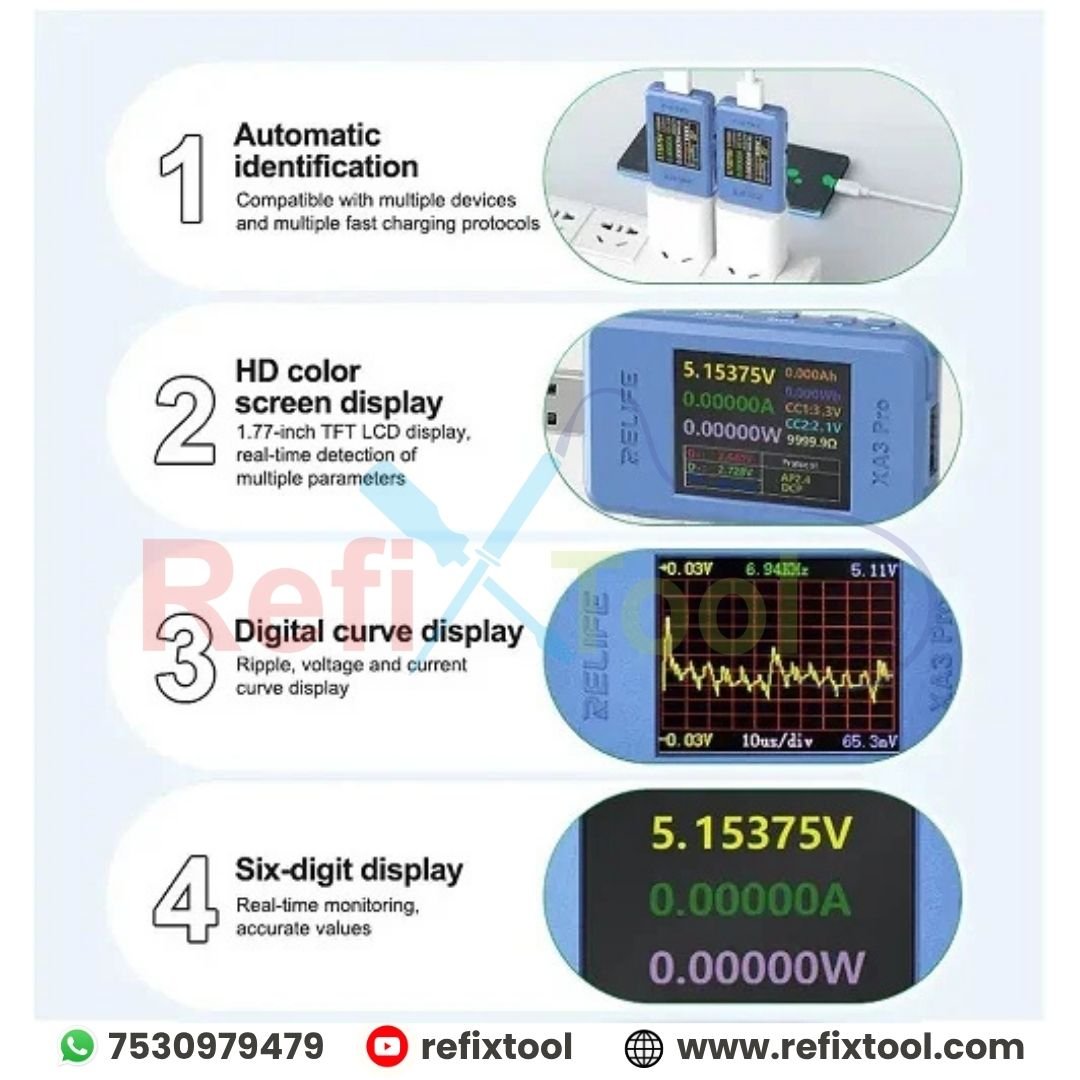

Key Features:
Wide Protocol Support: Compatible with PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging protocols.
High Precision Detection: 6-digit display resolution up to 0.00001, monitors subtle changes in voltage, current, and power.
High Current Capacity: Supports up to 6.5A current measurement and power range up to 156W.
Clear Display: Equipped with a 1.77-inch HD TFT LCD screen with multiple data views, including curve and digital modes.
Real-Time Monitoring: Simultaneous display of multiple parameters with flip-screen function.
Comprehensive Testing: Ideal for detecting performance of chargers, laptops, smartphones, and USB/Type-C devices.
Durable & Portable: Lightweight 27.5g design for easy handling and accurate diagnostics.
Specifications:
Brand: Relife
Model: XA3 Pro
Voltage Range: 4V – 24V
Current Range: 0 – 6.5A
Power Range: 0 – 156W
D+/D- Voltage Range: 0 – 3.3V
Capacity Range: 0 – 9999.99Ah
Power Consumption Range: 0 – 9999.99Wh
Cable Internal Resistance Range: 0 – 9999.99Ω
Resolution: 0.00001 (V/A/W)
Sampling Rate: 3.2Msps
Display: 1.77-inch TFT LCD
Net Weight: 27.5g
Product Size: 82 × 42.8 × 12.3 mm
Packing Size: 66.5 × 112.5 × 19 mm
Package Includes:

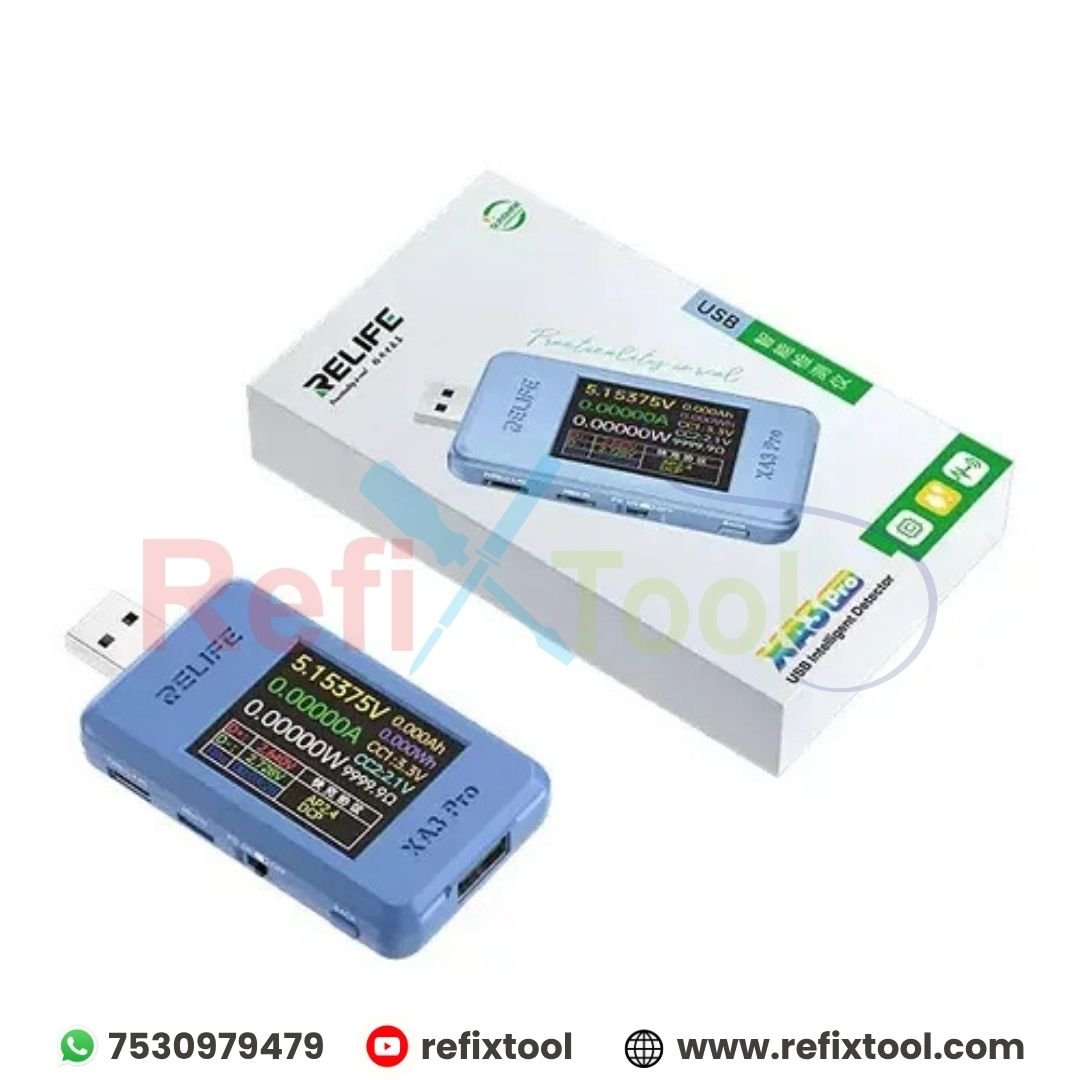

1 × Relife XA3 Pro USB Intelligent Detector
