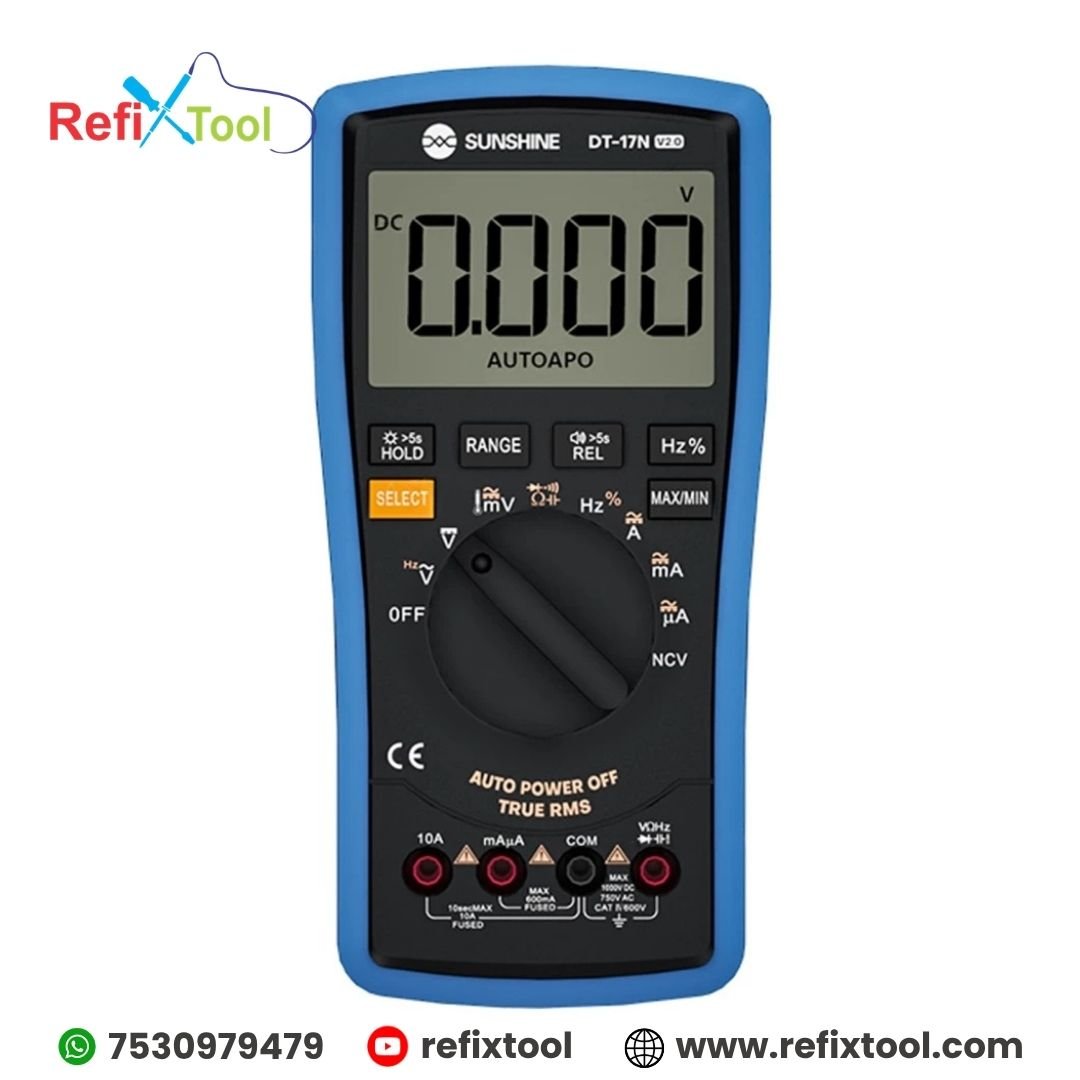

Sunshine DT-17N V2.0 Smart Multimeter with True RMS NCV Detection & Backlight Display is a reliable and high-precision measuring instrument designed for technicians, engineers, and electronics enthusiasts. With its smart automatic identification, True RMS capability, and advanced safety features, it ensures accurate and efficient measurement for a wide range of electrical parameters. Its compact design, clear LCD display, and durable build make it ideal for both professional and daily repair use.
Key Features

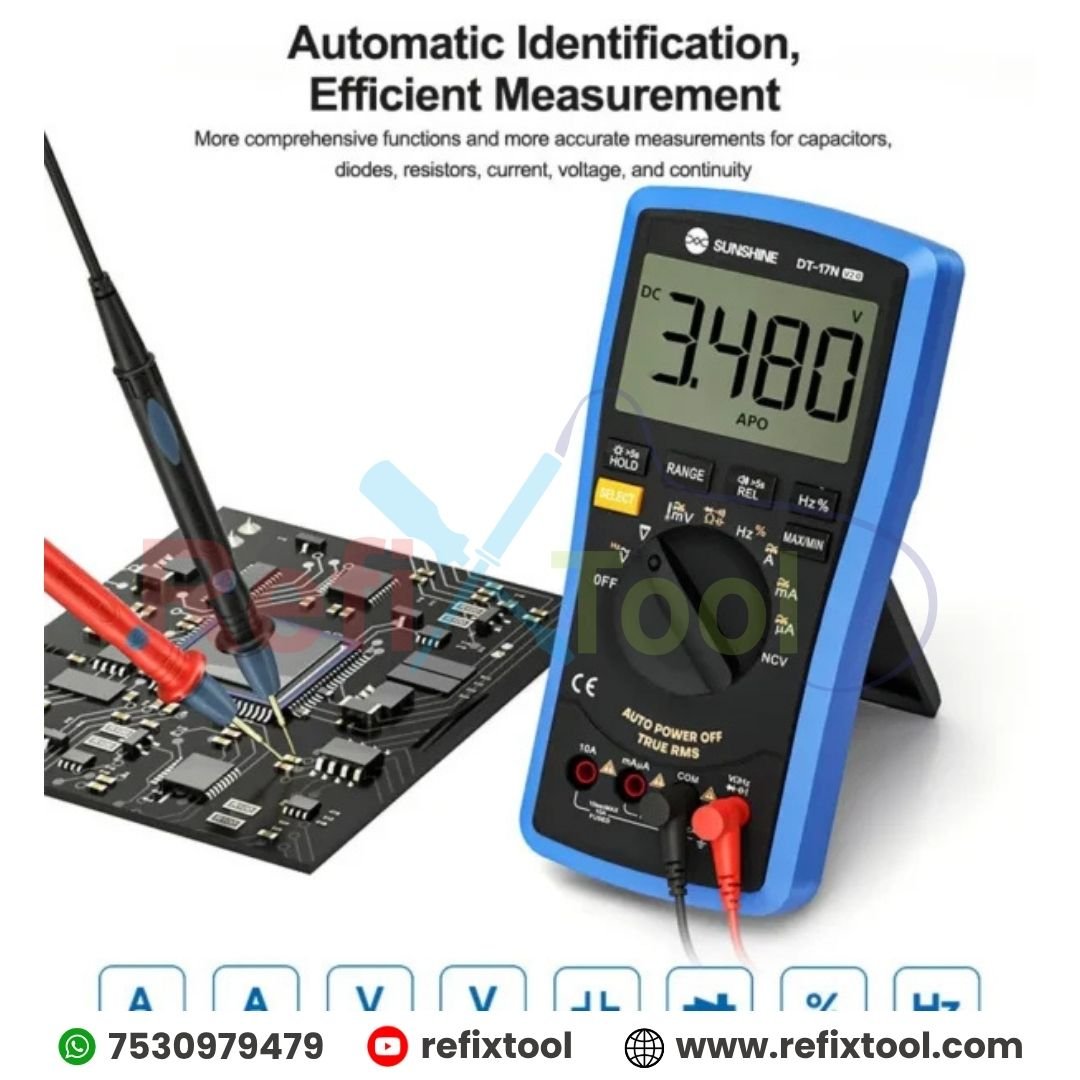

Smart Automatic Measurement: Automatically detects and measures voltage, resistance, capacitance, diode, and continuity for easy operation.
True RMS Accuracy: Provides accurate readings for both AC and DC measurements, even with unstable signals.
Smart Anti-burn Protection: Built-in protection chip with full-range overload safety and 250V mis-range protection.

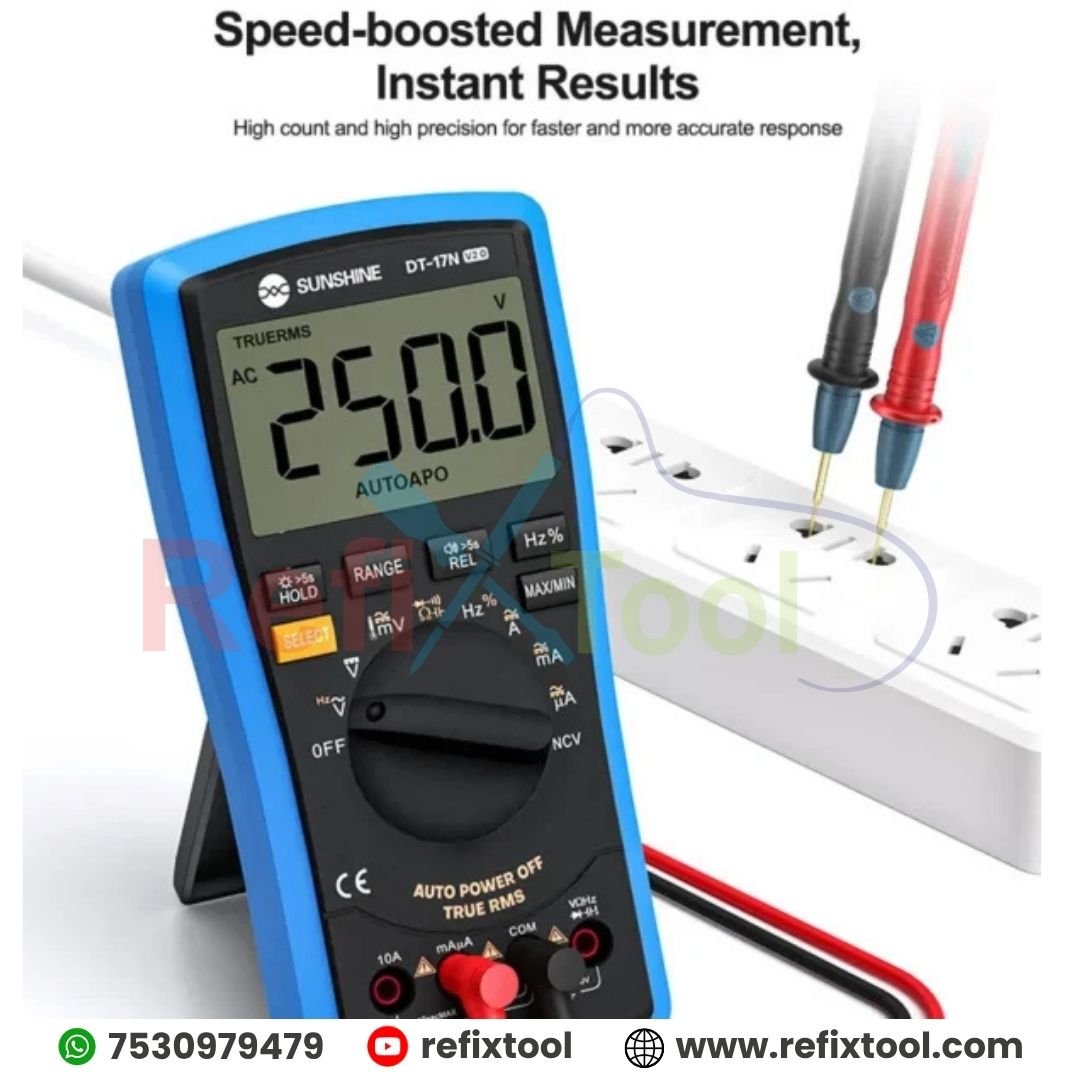

Fast Response Performance: High-speed sampling with precise and stable measurement results.

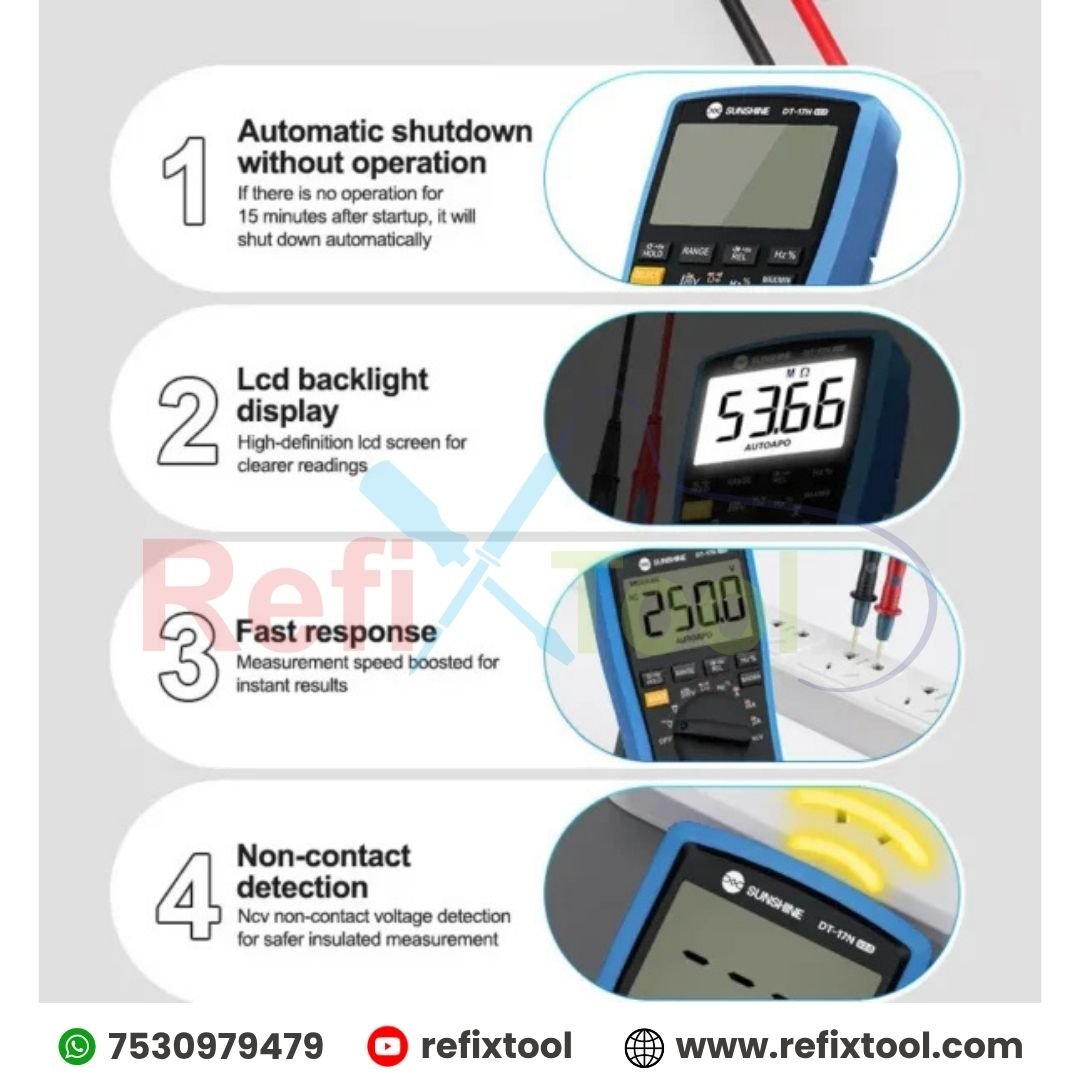

NCV Non-contact Detection: Detects AC voltage without direct contact and alerts with sound indication.

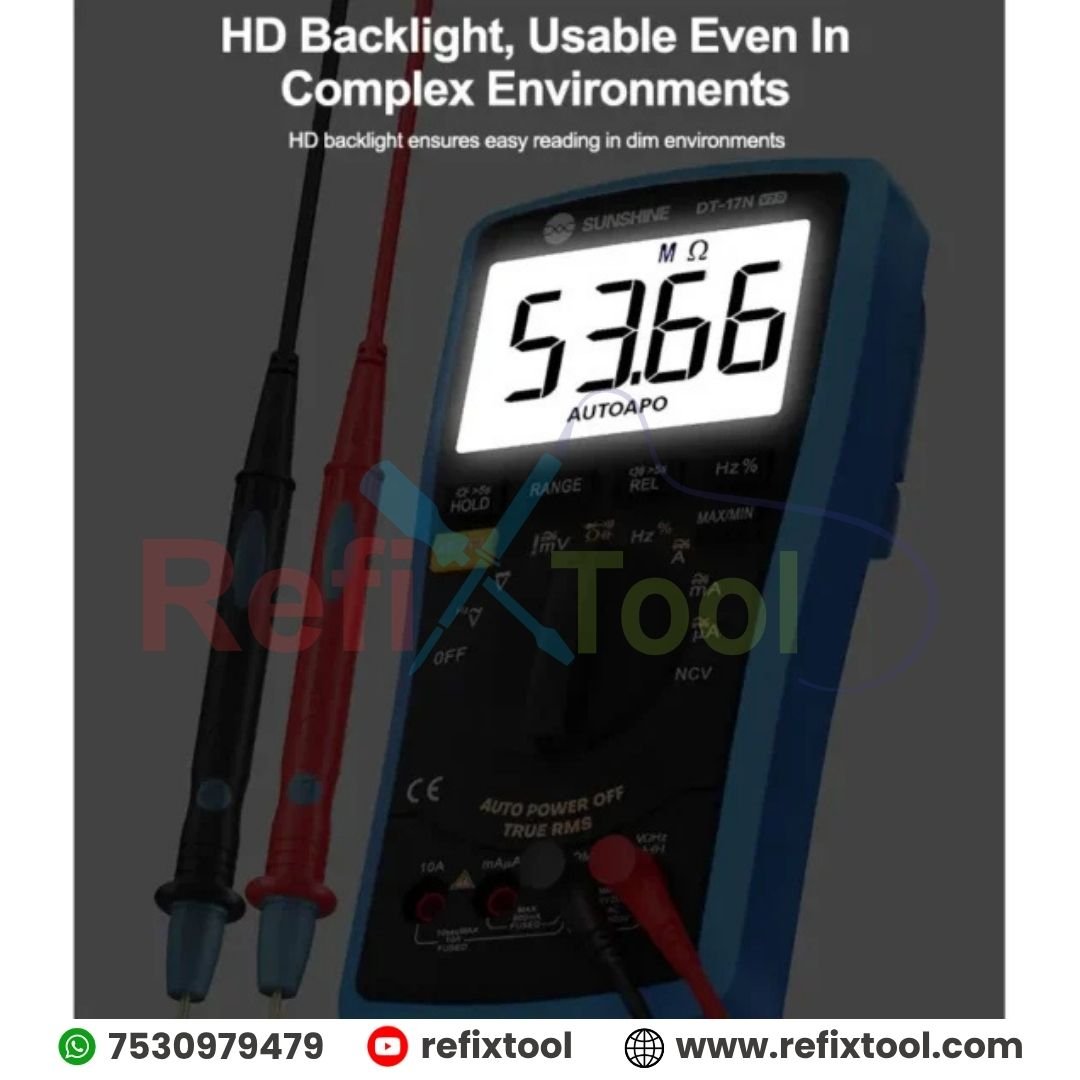

HD Backlight Display: Large LCD with backlight for clear readings even in low-light environments.
High-Precision Display: 5999 count (5 5/6 digits) auto-ranging display for detailed measurement values.
Continuity Buzzer Function: Quick and clear indication for circuit continuity testing.
Durable Test Probes: Gold-plated, high-sensitivity probes with strong conductivity and anti-oxidation properties.

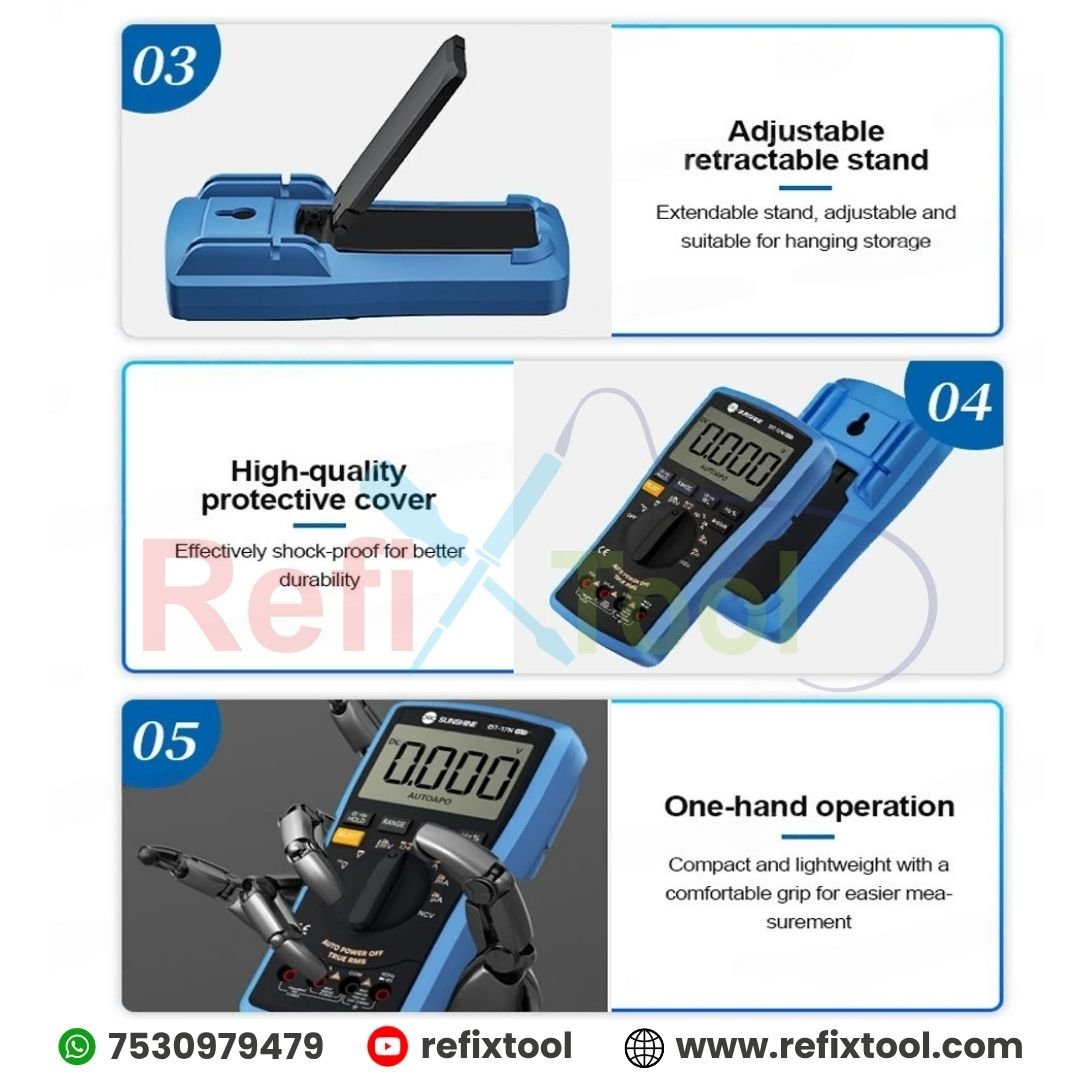

Compact & Ergonomic Design: Lightweight body with one-hand operation and adjustable stand for convenience.
Protective Build Quality: Shock-resistant outer cover for enhanced durability during daily use.
Specifications
Brand: Sunshine
Model: DT-17N V2.0
Product Type: Automatic Digital Multimeter
Display: LCD with backlight
Maximum Display: 5999 (5 5/6 digits), automatic polarity
Measurement Method: Dual-integration A/D conversion
Sampling Rate: Approx. 3 times per second
True RMS: Supported
Over-range Indication: "OL" display
Low Battery Indication: Yes
NCV Detection: Yes
Operating Temperature: 0–40°C
Humidity Range: <80% RH
Power Supply: 9V battery
Net Weight: Approx. 355g
Dimensions: 184 × 90 × 46 mm

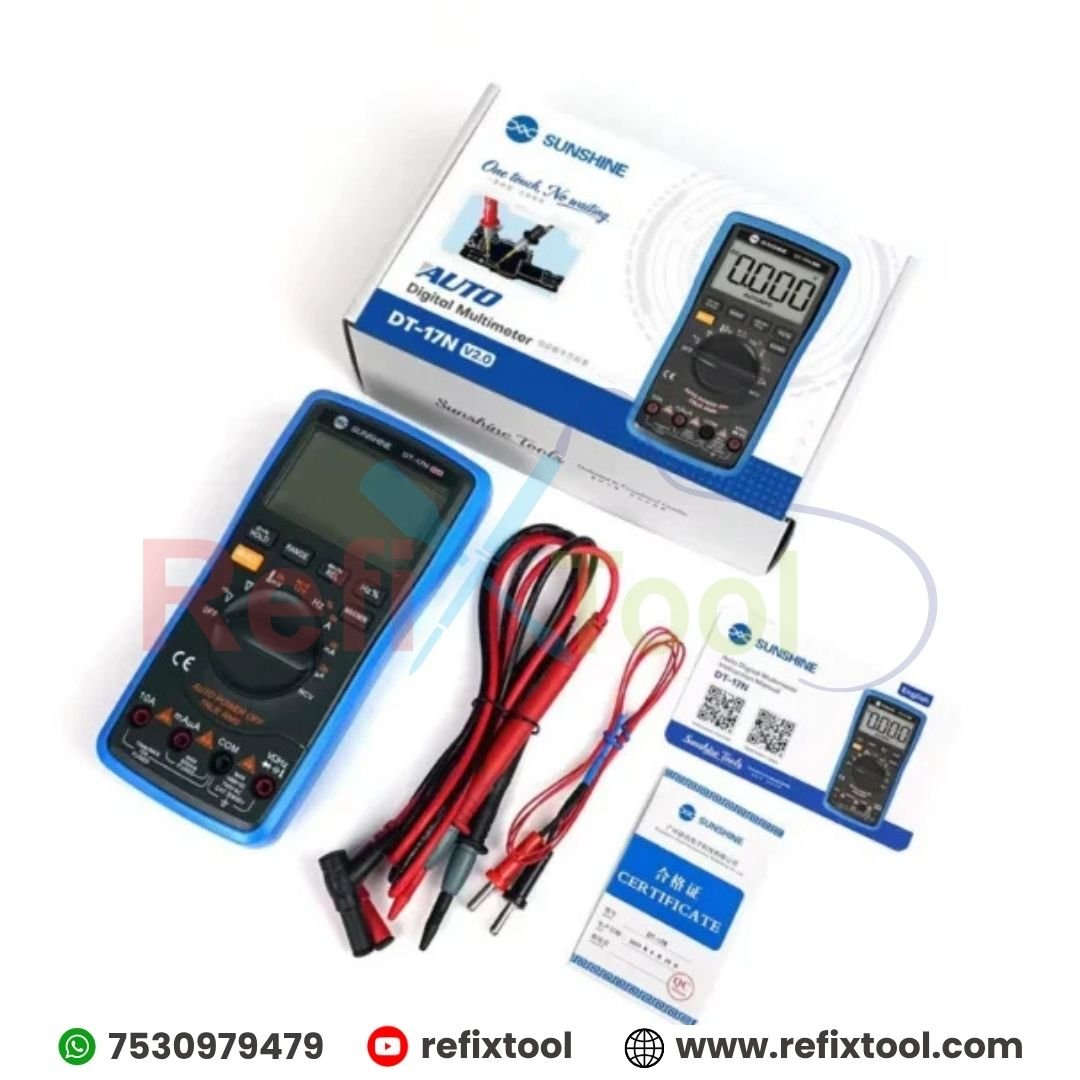

Package Includes
1 × Sunshine DT-17N 2.0 Digital Multimeter (Battery not included)
1 × Test Cable
