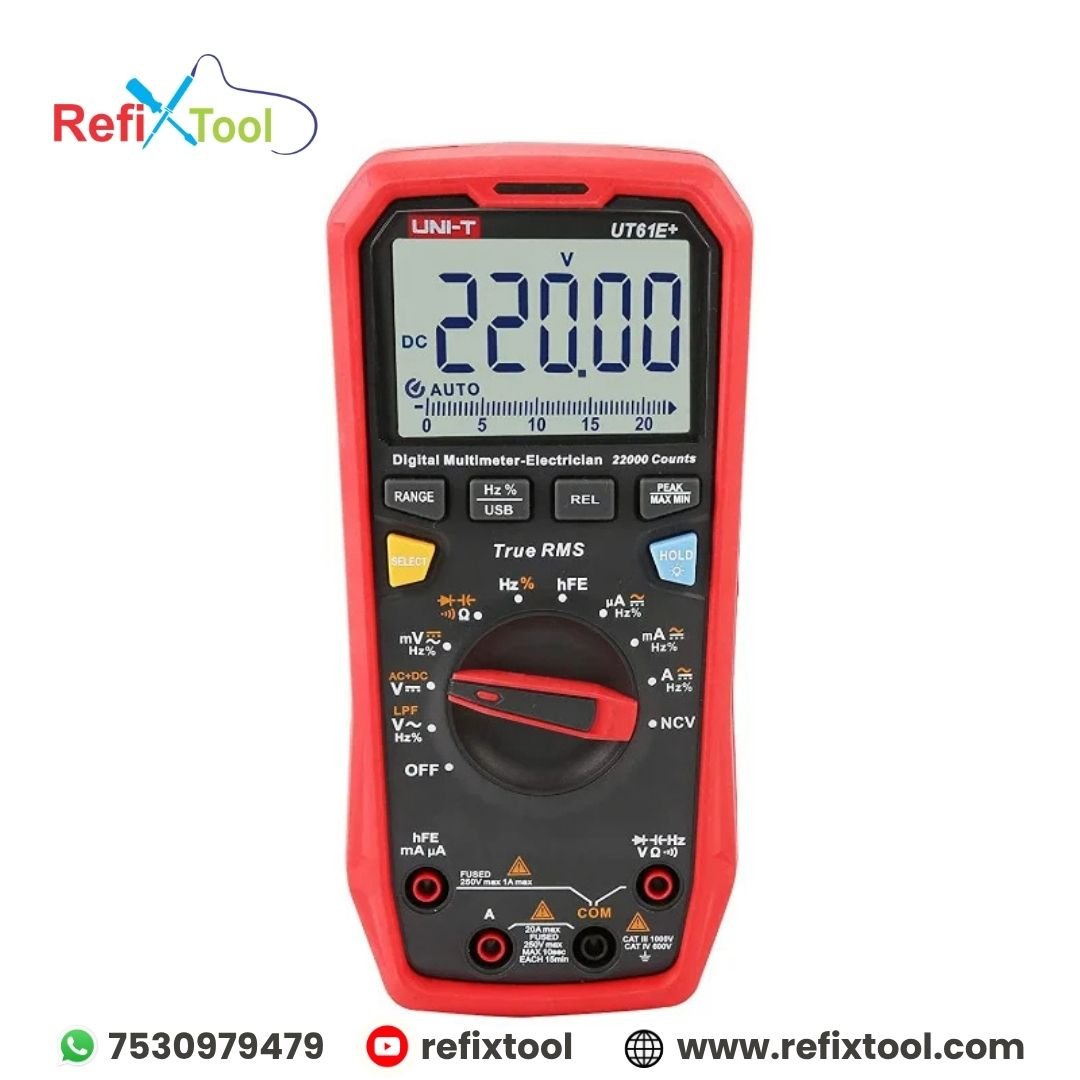

UNIT UT61E+ True RMS Digital Multimeter 220MHz is a reliable and high-performance testing tool designed for professionals and advanced electronics applications. With an impressive 22,000 display count and the ability to measure up to 1000V AC/DC, it ensures precise and accurate readings across a wide range of measurements.
This advanced multimeter features True RMS, Max/Min/Relative mode, Peak Hold, and data hold with backlight for convenient usage. The audible and visual NCV alarm provides extra safety when detecting high voltage or current, while USB communication enables easy data transfer to PC or app (optional).
With multiple test functions including resistance, capacitance, frequency, duty cycle, diode, and continuity, the UT61E+ is versatile for lab, field, and industrial use. Built-in input protection, safety rating of CAT III 1000V / CAT IV 600V, and intelligent design ensure safe and reliable operation.

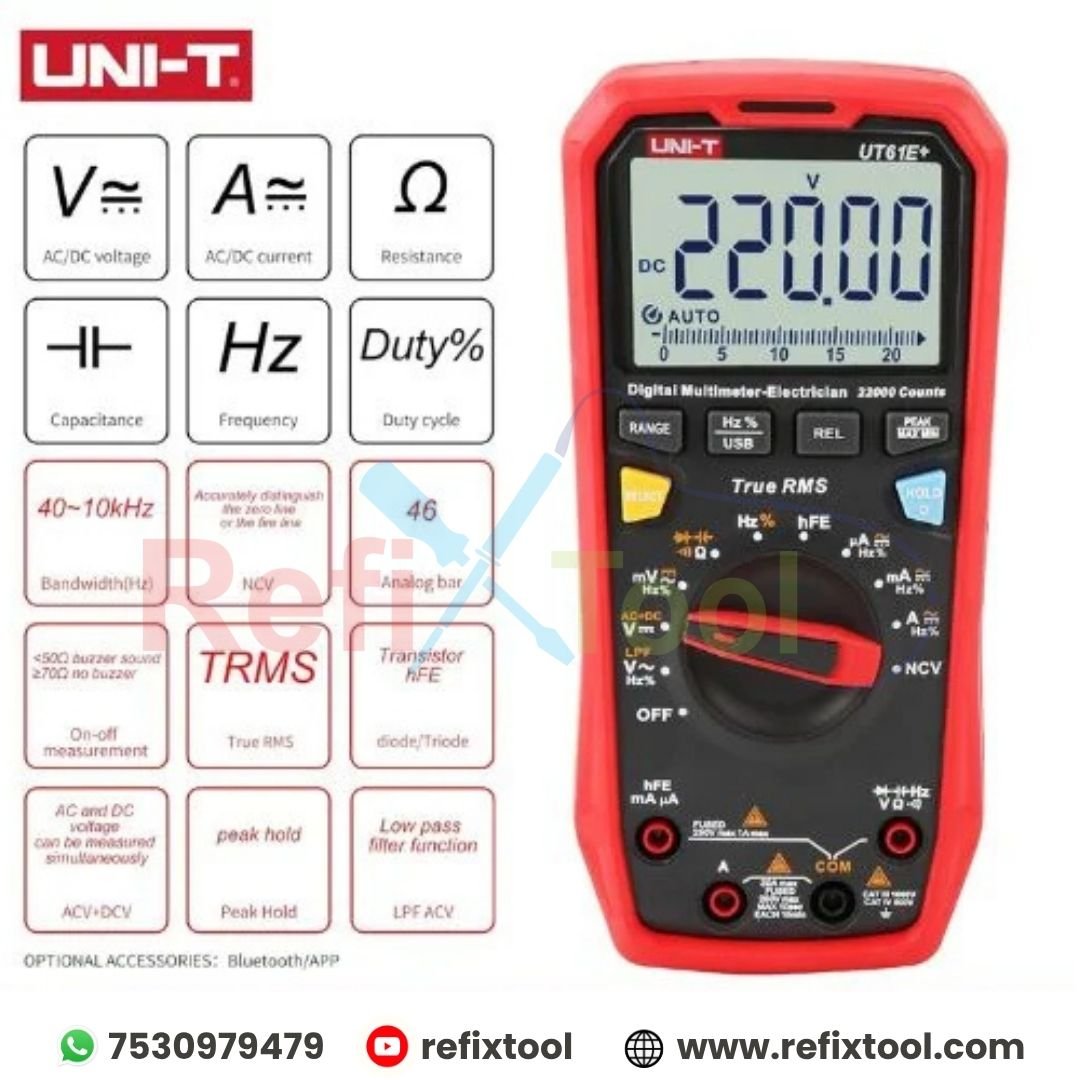

Key Features:
22,000 display count with True RMS accuracy
Measures up to 1000V AC/DC, 20A AC/DC, 220MΩ resistance, 220mF capacitance
Frequency up to 220MHz, duty cycle 0.1%–99.9%
NCV with audible & visual alarm
Data hold, Max/Min, Relative, Peak Hold functions
USB communication for PC connection
Transistor hFE test, diode, and continuity check
Backlit display with analog bar indicator
Intelligent input protection for added safety
Compact, lightweight (350g) design
Specifications:
Voltage: AC/DC up to 1000V
Current: AC/DC up to 20A
Resistance: 220MΩ max
Capacitance: 220mF max
Frequency: 220MHz
Display: 22,000 counts, 46-segment analog bar
Power: 4 x 1.5V batteries (R03)
Dimensions: 190 × 90 × 50 mm | Weight: 350g
Package Includes:
UT61E+ Multimeter
Gold-plated test leads
USB cable
Multi-purpose socket
User manual
Batteries
