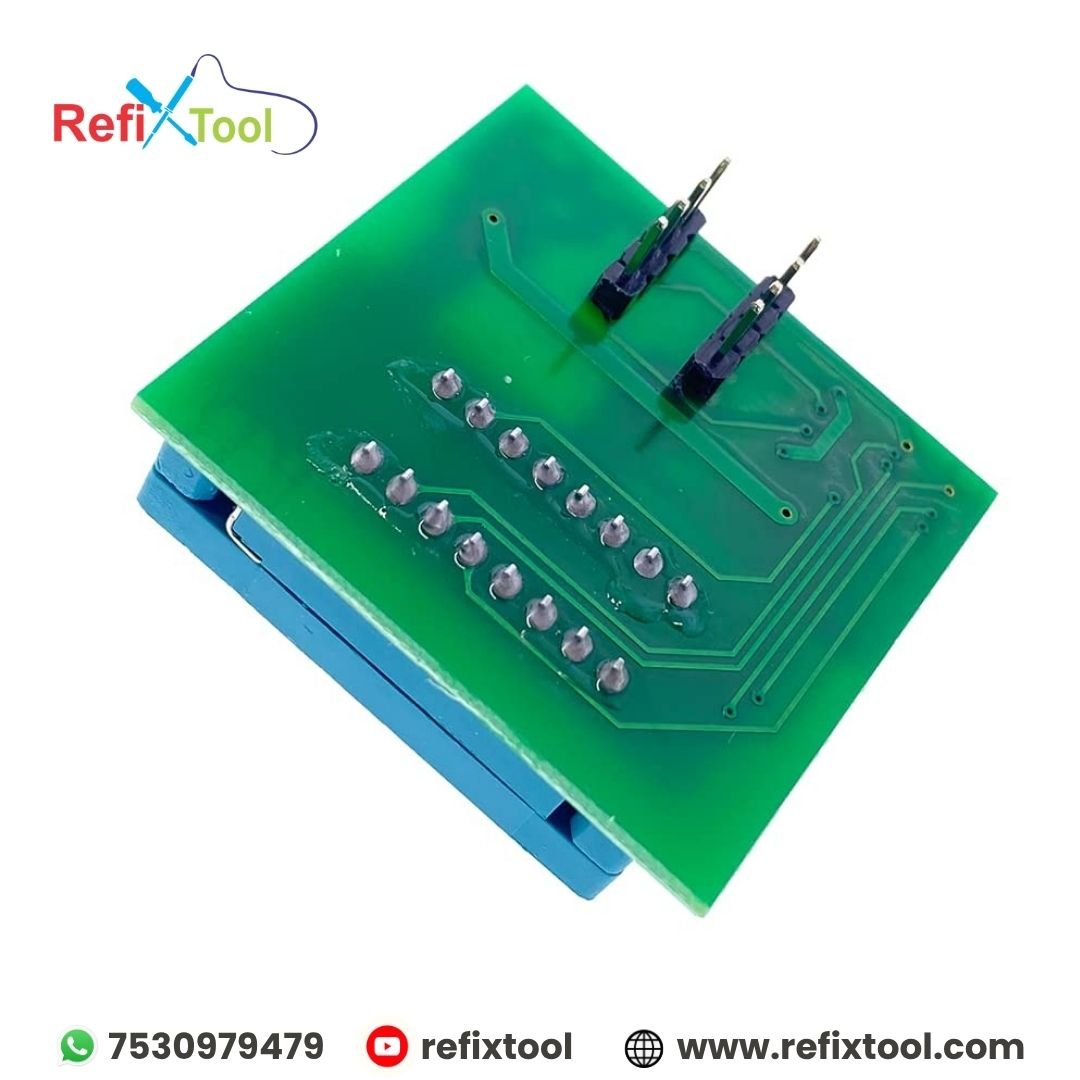

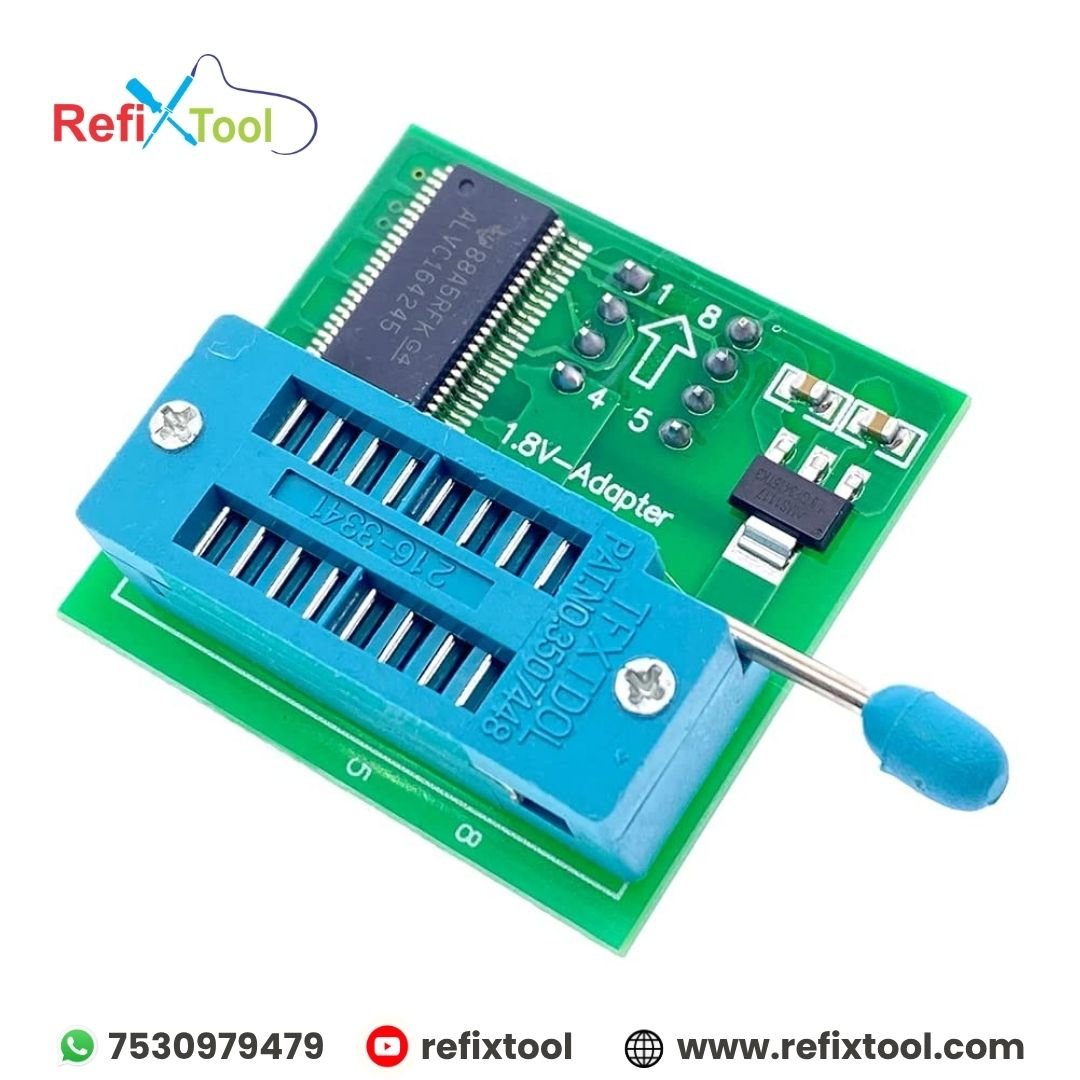

Adapter 1.8 V SPI Flash SOP8 DIP8 W25 MX25 Use On Programmers is designed to program low-voltage SPI Flash memory chips such as Winbond (W25 series) and Macronix (MX25 series) that operate at 1.8V. It acts as a bridge for universal programmers (like TL866, RT809F, Skypro, and Stager) which typically support 3.3V–6.5V, allowing safe programming of 1.8V chips without risk of damage.
Ideal for Apple MacBook motherboard repair and other 1.8V Flash chip programming tasks.
Key Features:
Voltage Conversion: Enables 1.8V chip programming using 3.3V+ universal programmers
Wide Compatibility: Works with multiple programmer models and chip brands
Plug & Play Design: Easy to use with direct socket connection
Durable Build: Made from high-quality PCB material for stability and long-term use
Essential Tool: Ideal for BIOS repair, Flash memory programming, and chip testing
Specifications:
Supported Voltage: 1.8V SPI Flash chips
Compatible Chip Packages: SOP8 (150mil / 200mil body width), DIP8
Supported Programmers: TL866, Skypro, RT809F, Stager, and similar universal programmers
Compatible Chip Series:
Winbond: W25q10ew, W25q20ew, W25q40bw, W25q80ew, W25q16dw, W25q32fw, W25q64dw, W25q128fw
Macronix: MX25u5121e, MX25r512f, MX25u1635e, MX25u6435f, MX25u12835f, MX66u51235f, etc.
Applications: Apple MacBook motherboard BIOS chips, low-voltage SPI Flash memory programming
Adapter Type: SOP8 to DIP8 conversion for 1.8V operation
Packing Include:
1 x 1.8V SPI Flash SOP8 DIP8 Adapter
