Handheld Digital Multimeter Manual Range with Temperature, Frequency & Continuity Tester is a versatile and reliable testing tool designed for accurate electrical measurement in repair, maintenance, and diagnostic work. With a clear LCD display, multiple testing functions, and durable construction, it is suitable for technicians, electricians, and electronics users who need consistent and precise performance.
Key Features
Large LCD Display: Clear screen with fast reading and visible unit symbols for easy measurement.
Manual Range Control: Allows precise selection of measurement ranges for better accuracy.
Multi-Function Measurement: Supports AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, diode, and continuity testing.
High Measurement Accuracy: Stable and reliable readings with dual integration A/D conversion system.
Continuity Buzzer: Audible alert for quick circuit continuity checking.
Data Hold Function: Freezes readings for convenient observation and recording.
Auto Power Off: Saves battery power when the device is not in use.
Shockproof Protection: Thick silicone cover provides insulation, anti-drop safety, and durability.

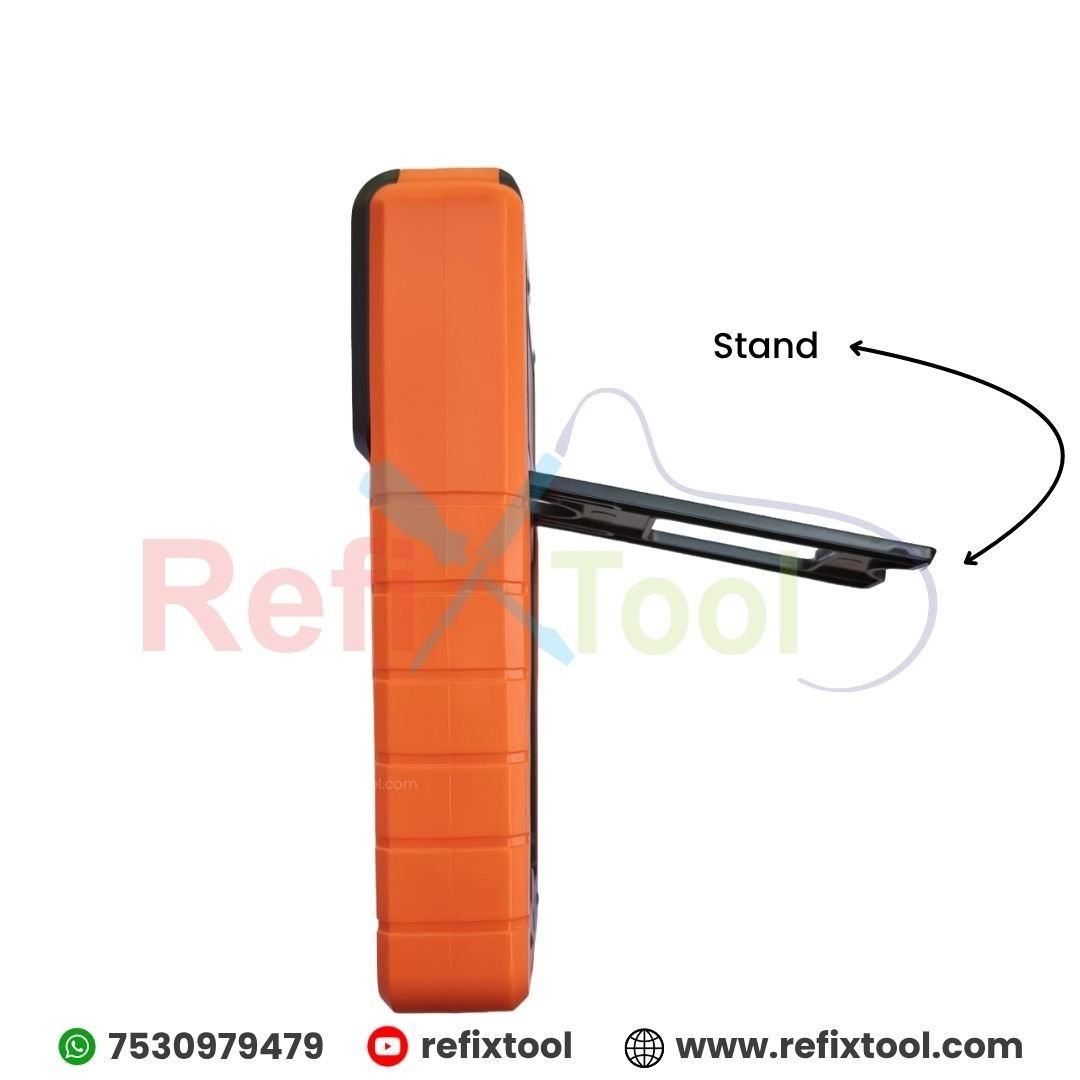

Stand Support Design: Built-in stand for hands-free operation and better viewing angle.
FireWire Detection: Helps identify live wire presence with simple probe usage.
Specifications
Product Type: Manual Range Digital Multimeter
Display: LCD (1999 counts, 2–3 updates/sec)
DC Voltage Range: 200mV – 1000V
AC Voltage Range: 200mV – 750V
DC Current Range: 2mA – 20A
AC Current Range: 2mA – 20A
Resistance Range: Up to 200MΩ
Capacitance Range: 2nF – 200µF
Frequency Range: Up to 200kHz
Temperature Range: -20°C to 1000°C
Measurement Method: Dual-slope A/D conversion
Power Supply: 9V Battery
Operating Temperature: 0–40°C
Dimensions: Approx. 186 × 86 × 41 mm
Weight: Approx. 280g

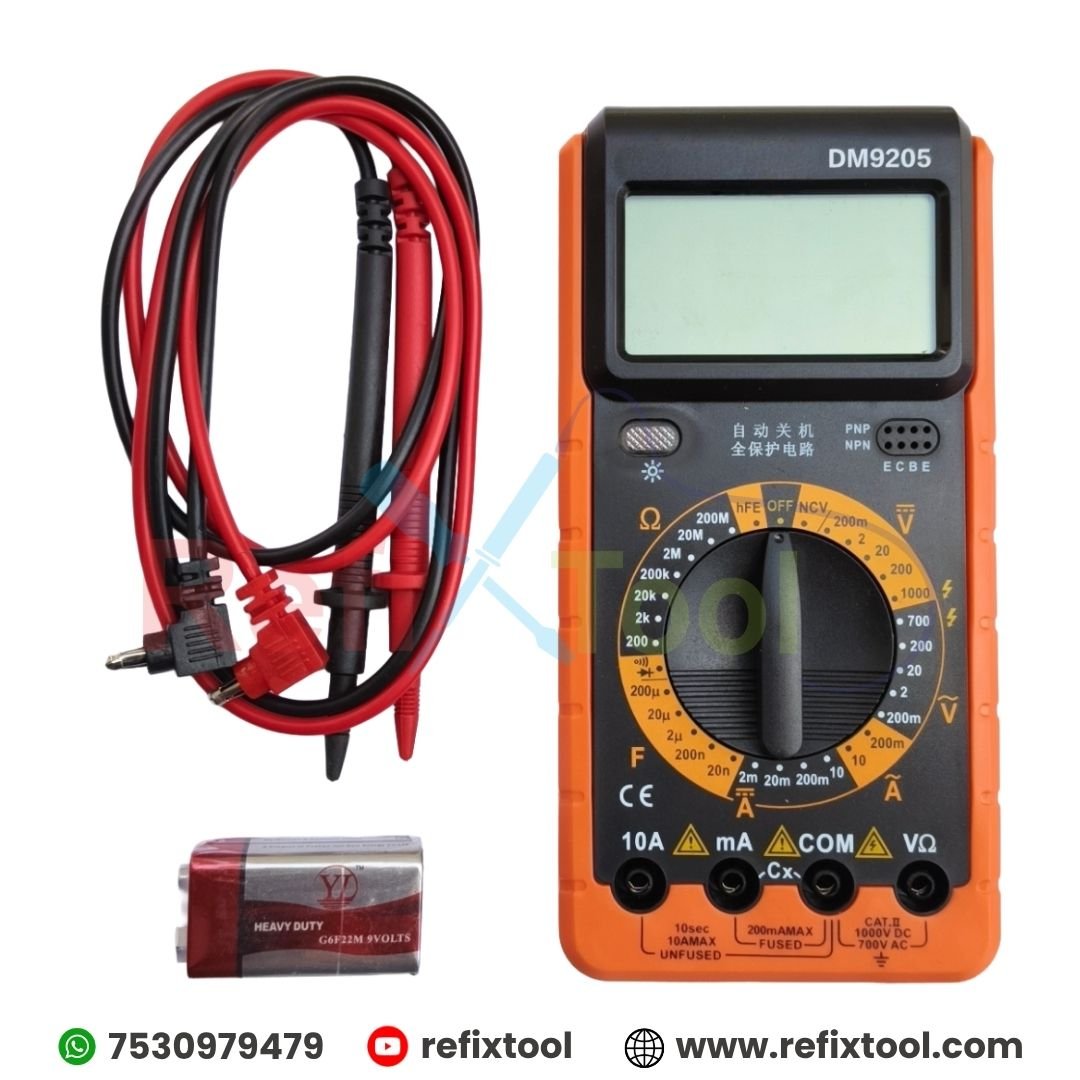

Package Includes
1 × Digital Multimeter
1 × Test Wire
1 × 9V Battery
