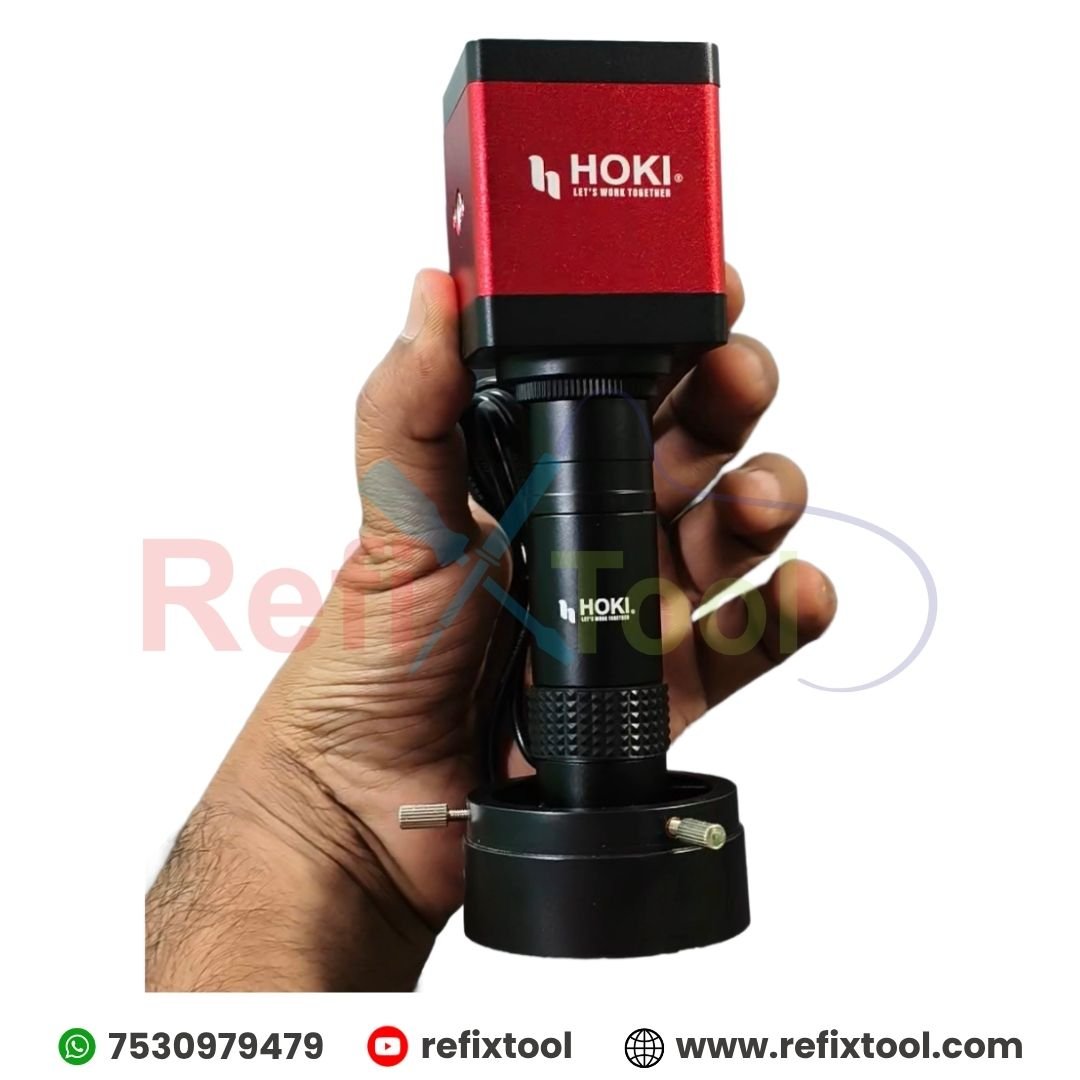

HOKI MSD 48S Digital Microscope Camera 38MP HDMI/VGA is a professional imaging solution designed for precision observation and analysis. With 38MP resolution, HDMI/VGA dual output, and advanced image processing features, it delivers crystal-clear visuals for research, education, and industrial applications.
Key Features
High-Resolution Imaging: 38MP digital camera with sharp, detailed output for accurate observation.
Dual Output Interface: Supports HDMI and VGA, ensuring compatibility with a wide range of monitors.
Flexible Lens Support: Equipped with a CS lens for versatile imaging needs.
Fast Frame Rate: Capture smooth videos at 30FPS with progressive scanning mode.
Customizable Display: Supports resolutions up to 1920×1080 (HDMI/VGA) with multiple aspect ratios (16:9, 4:3).
On-Screen Display (OSD): Easy-to-navigate English/Chinese menus for quick settings adjustment.
Image Enhancements: Adjustable brightness, contrast, sharpness, and saturation for optimal results.
Additional Functions: White balance modes, HDR, cross-line support (8 colors), mirror flip, freeze, negative mode, and compare view.
Durable Build: Compact design (75×50×50mm) with efficient 12V / 150mA power consumption.

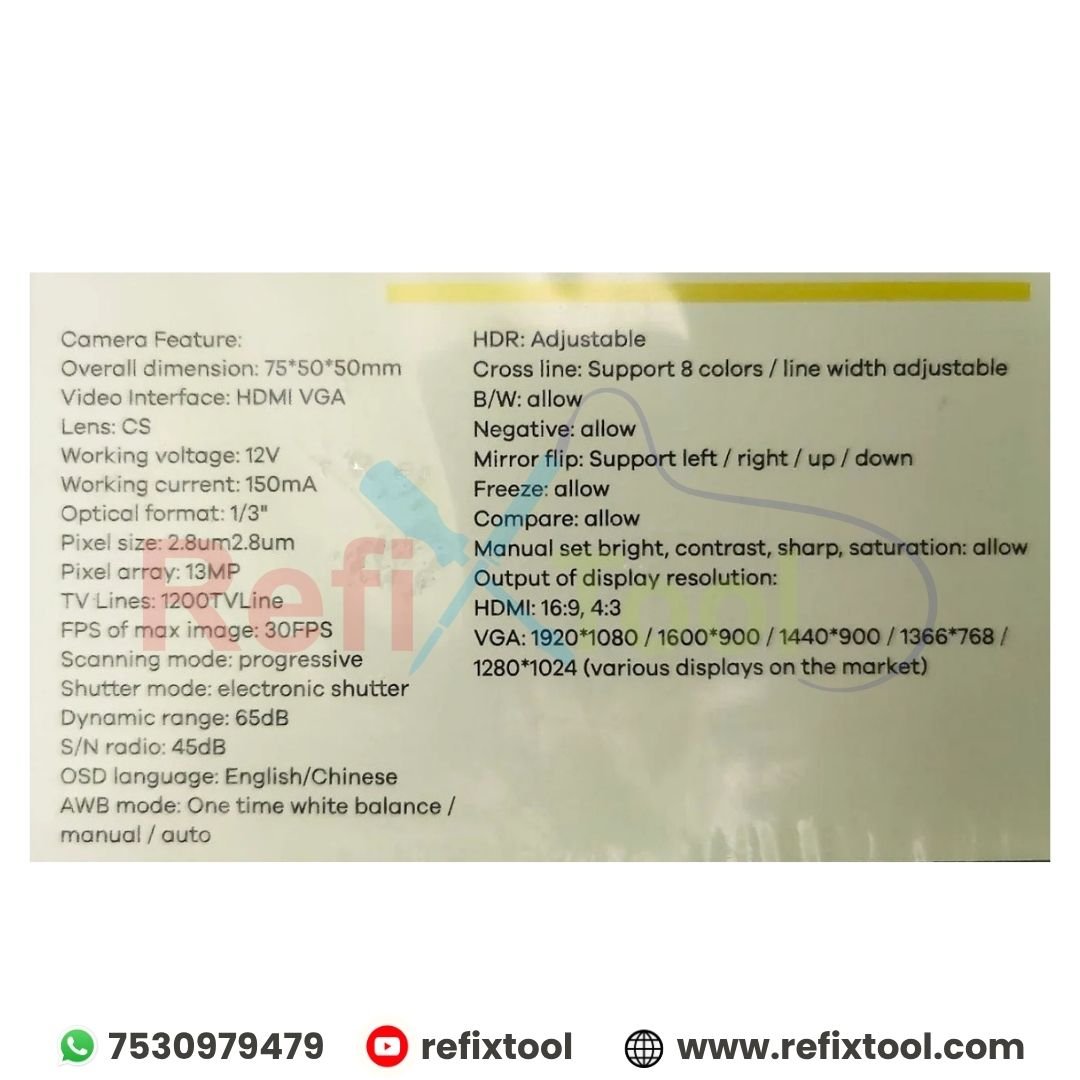

Specifications
Camera Type: Digital Microscope Camera
Resolution: 38MP (1200 TV Lines)
Video Interface: HDMI / VGA
Lens Mount: CS
Pixel Array: 13MP
Pixel Size: 2.8µm × 2.8µm
Dynamic Range: 65dB
S/N Ratio: 45dB
Frame Rate: Max 30FPS
Scanning Mode: Progressive
Shutter Mode: Electronic Shutter
Dimensions: 75 × 50 × 50mm
Working Voltage/Current: 12V / 150mA
Supported Resolutions: HDMI (16:9, 4:3), VGA (1920×1080, 1600×900, 1440×900, 1366×768, 1280×1024)

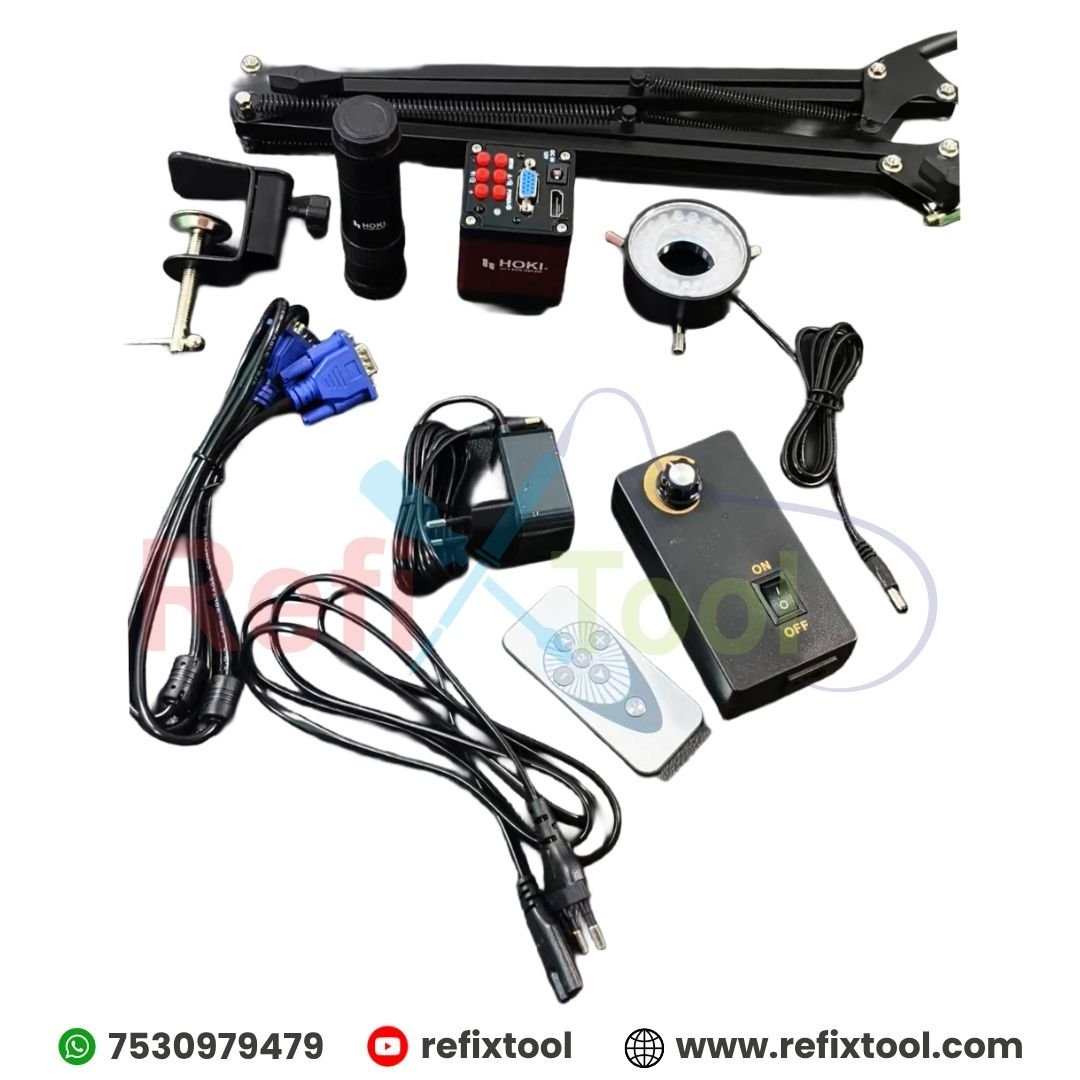

Package Includes
1 × HOKI MSD 48S Digital Microscope Camera
