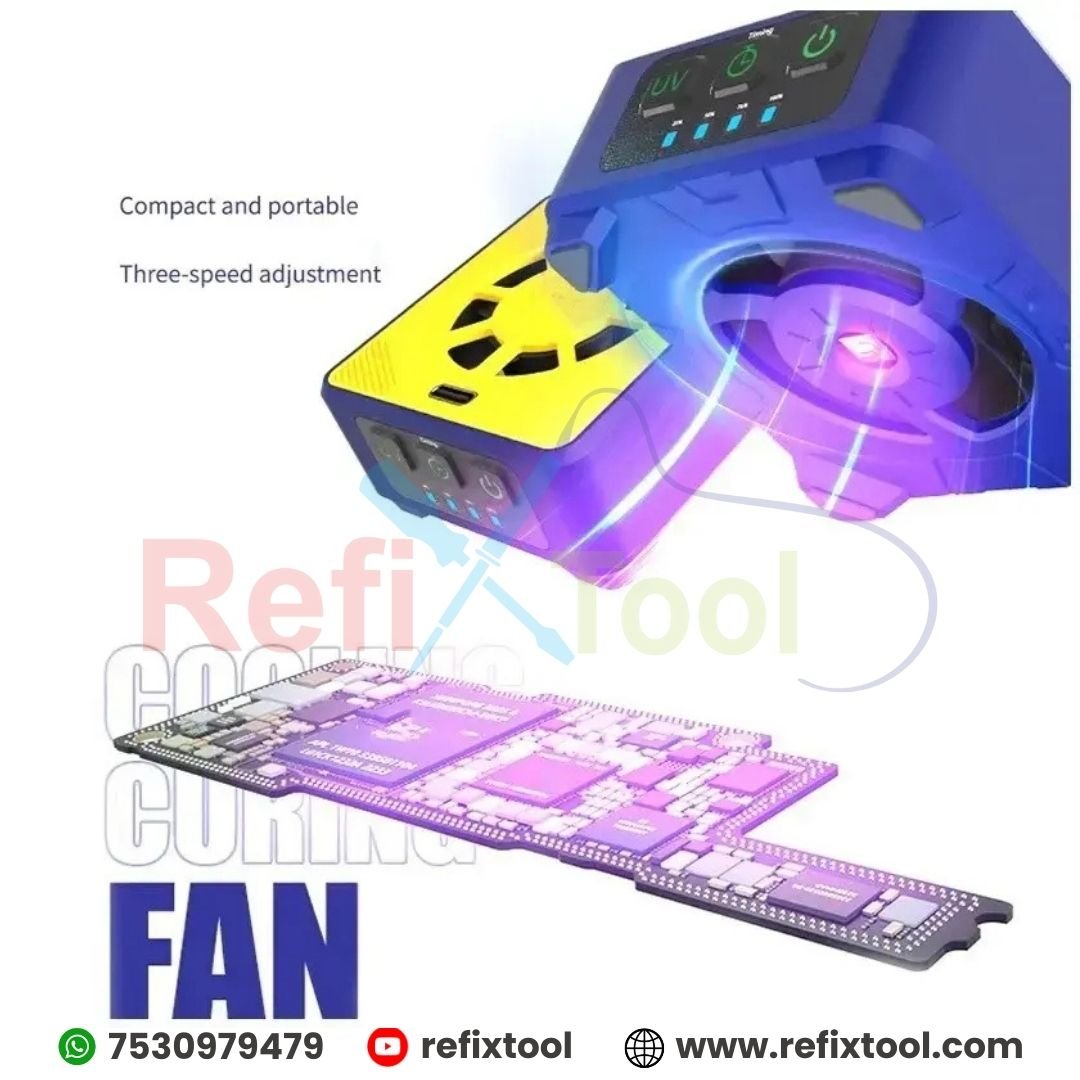

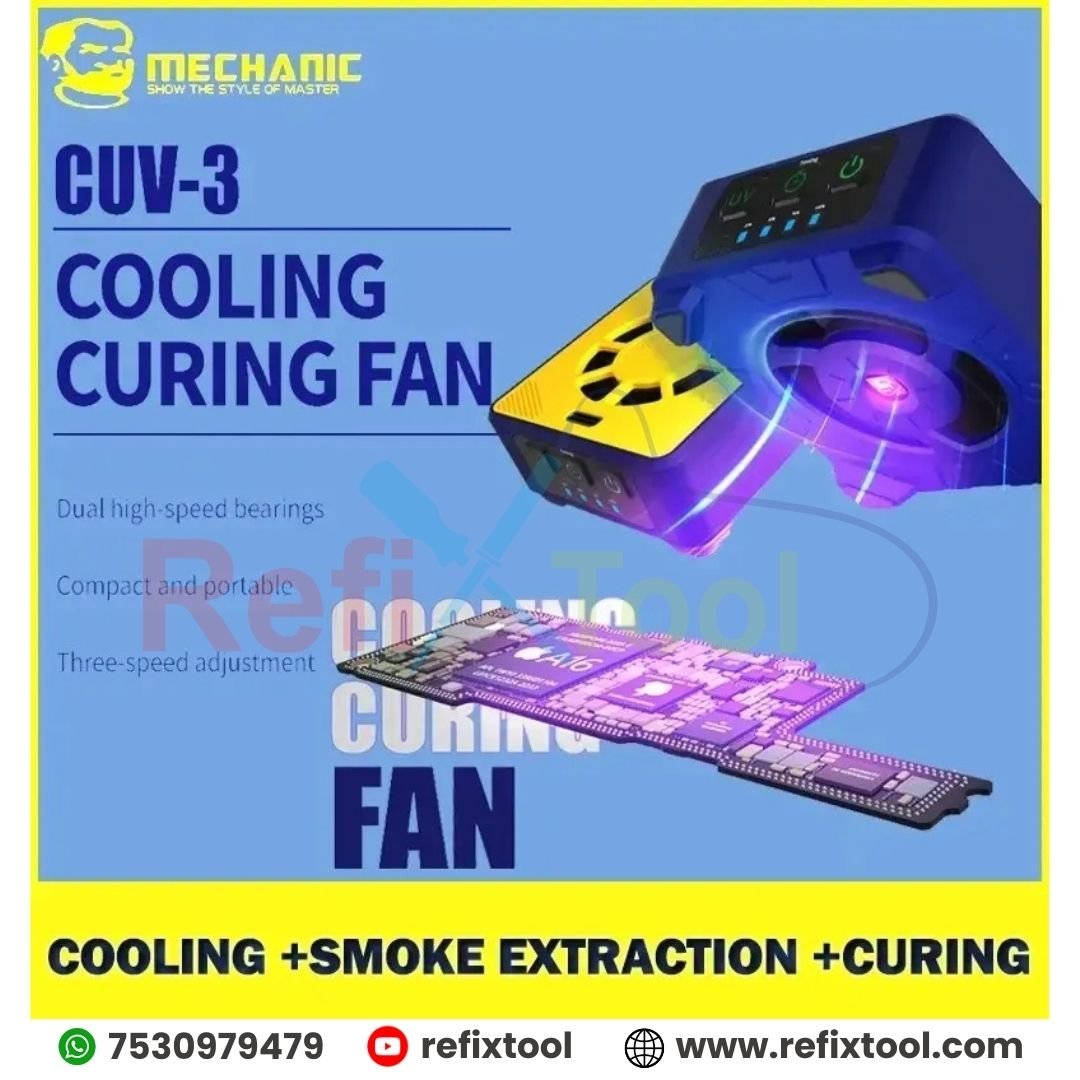

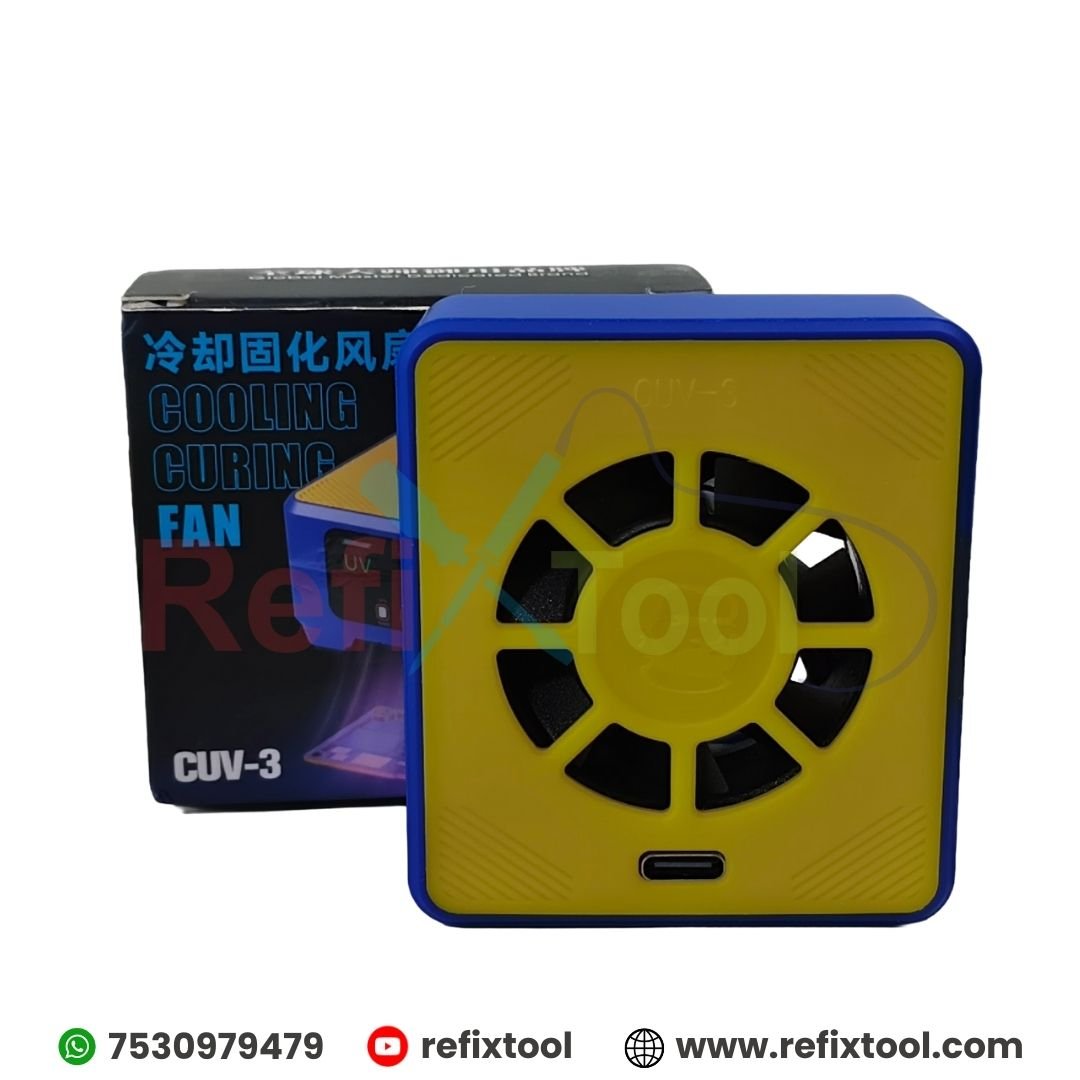

Mechanic CUV-3 Cooling UV Curing Fan Smoke Extraction All-in-One Fan is a compact, multi-functional workstation tool developed for professional electronics repair. By combining rapid component cooling, UV curing, and airflow-assisted smoke dispersion into a single portable unit, it significantly improves repair efficiency and workspace safety when working on delicate PCBs and micro-components.
Key Features
Three-in-One Integrated Design: Combines cooling fan, UV curing lamp, and smoke extraction assistance in one compact device, reducing the need for multiple tools and keeping the workstation organized.
High-Efficiency Cooling Fan: Equipped with dual high-speed bearings and three adjustable speed levels, the fan quickly dissipates heat during or after soldering, helping protect sensitive ICs and PCB traces from thermal damage.
UV Curing Lamp (395nm): Features double SMD UV lamp beads with a 395nm violet wavelength, suitable for fast curing of UV solder mask (green oil), optical glue, and UV adhesives used in screen and motherboard repairs.
Smoke Extraction Support: Strong airflow helps push soldering fumes away from the working area, contributing to a cleaner and more comfortable repair environment.
Wireless and Portable Operation: Compact, lightweight body with a built-in rechargeable lithium battery allows cordless use anywhere on the workbench without cable clutter.

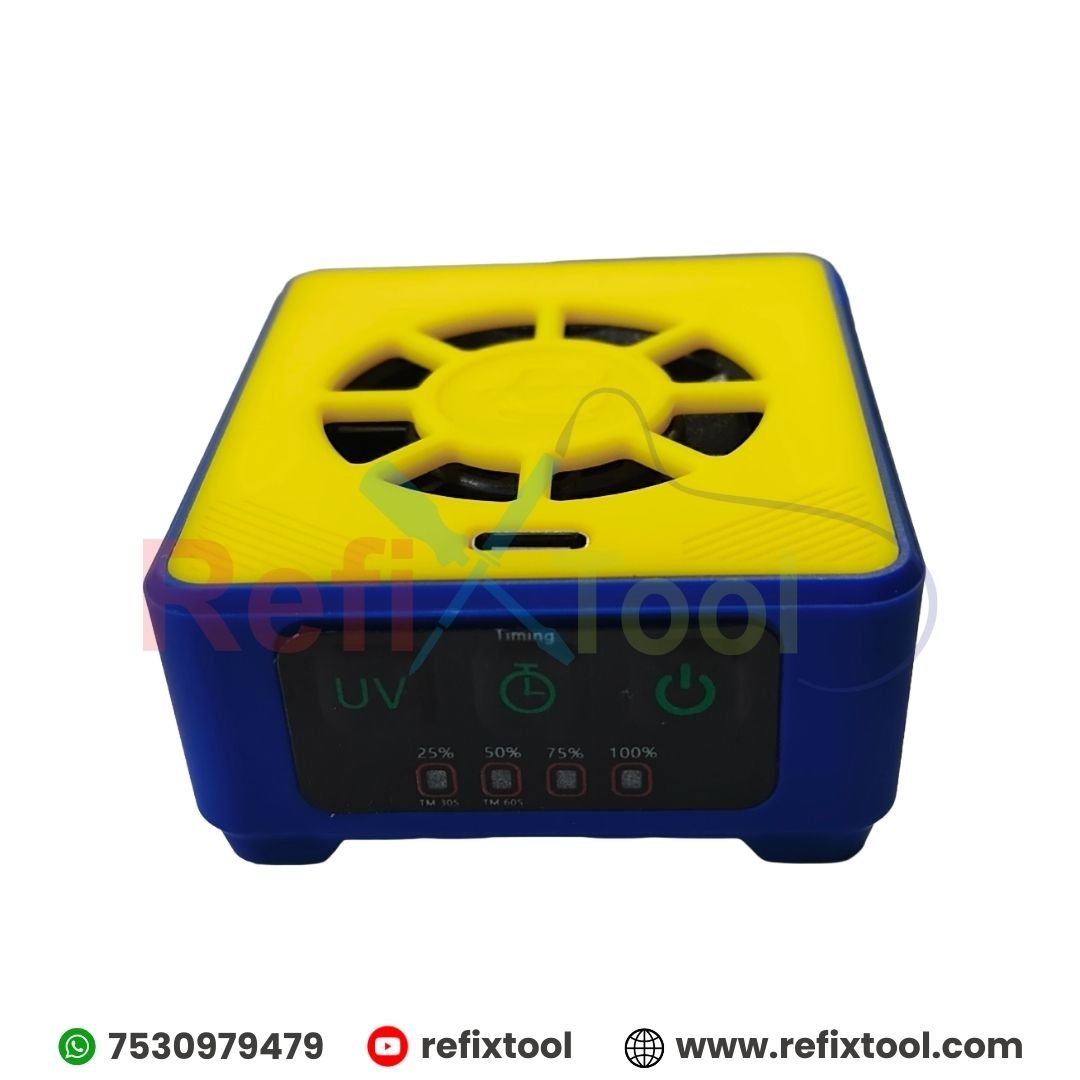

Simple and Intelligent Controls: Includes one-button power control, two-stage timing function, three-speed fan adjustment, and a four-level battery indicator showing 25%, 50%, 75%, and 100% power status.
Specifications
Brand: Mechanic
Model: CUV-3
Functions: Cooling fan, UV curing, smoke extraction
Charging Input Voltage: 5.0V ± 0.5V
Charging Current: 480mA
Charging Time: 2 – 2.5 hours
Battery Capacity: Built-in 800mAh lithium battery
Fan Speed Levels: 3 speeds (approx. 1W / 1.3W / 1.6W)
UV Wavelength: 395nm
Lamp Type: Double SMD UV lamp beads
Power Display Levels: 25% / 50% / 75% / 100%
Product Size: 66 × 59 × 31 mm
Applications
Mobile phone, tablet, and laptop repair work
PCB soldering and desoldering processes
UV solder mask (green oil) application and curing
UV adhesive curing for screen and component bonding
Bench cooling and basic solder smoke management
Package Includes
1 × Mechanic CUV-3 Cooling UV Curing Fan Smoke Extraction All-in-One Fan
