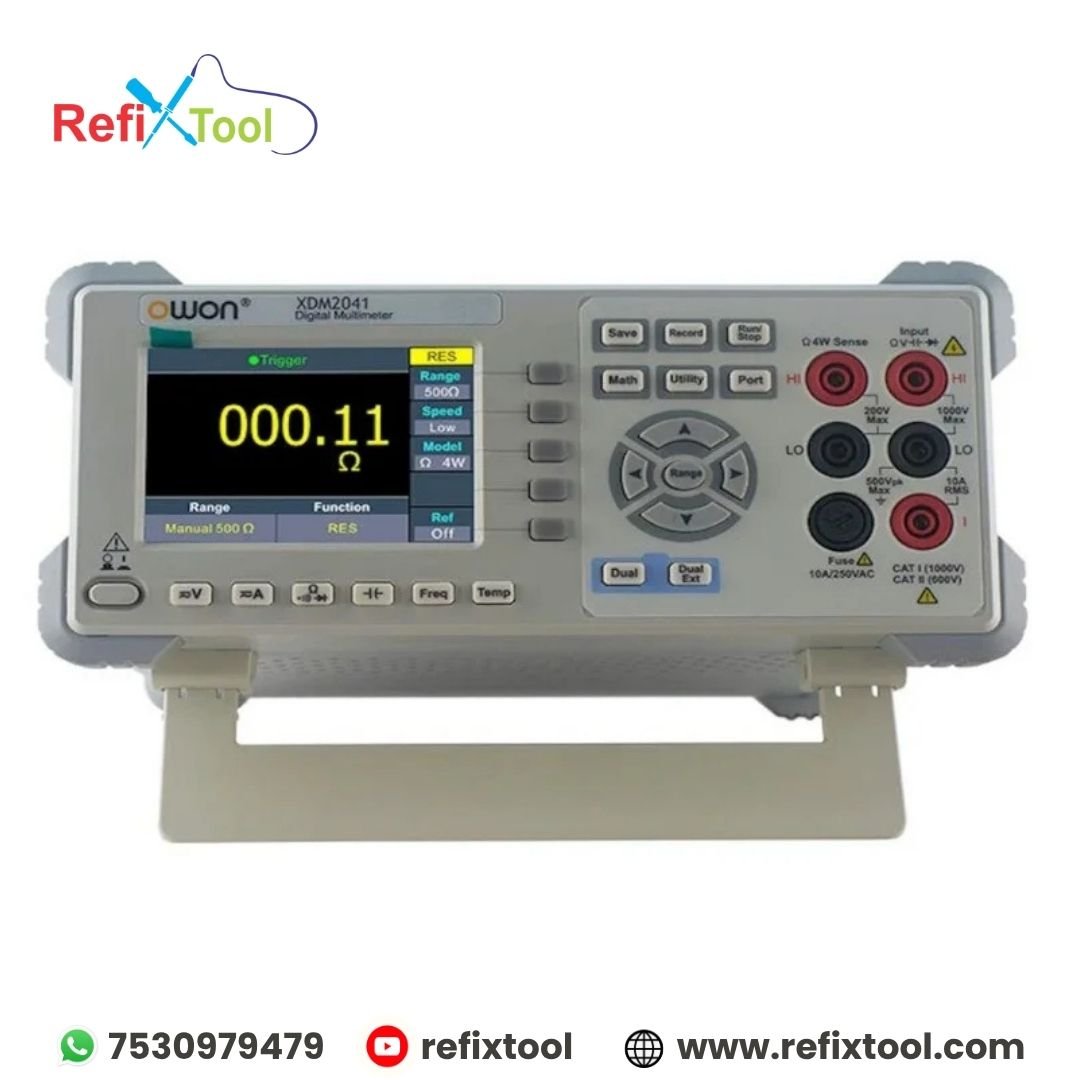

OWON XDM2041 Bench Top Digital Multimeter delivers precision, speed, and versatility for both professionals and labs. Featuring a 3.7-inch high-resolution LCD (480×320) with 55,000 counts, it ensures accurate and clear readings. With a measurement speed of up to 65 readings per second, it enables fast data acquisition.
It supports True RMS AC voltage/current measurement for both sinusoidal and non-sinusoidal signals, along with advanced functions such as dual-line display, chart-based trend analysis, and SCPI support for automation and remote control. Compact yet powerful, this benchtop multimeter is an essential tool for electronics testing, troubleshooting, and research.
Key Features:
High-Resolution Display: 3.7-inch TFT LCD (480×320) with 55,000 counts.
Fast Measurement: Up to 65 readings per second for real-time monitoring.
True RMS Accuracy: Ensures precise AC voltage/current measurement.
Dual-Line Display: View multiple parameters simultaneously.
Trend Analysis: Chart mode for real-time waveform and data analysis.
SCPI Support: Seamless integration with software for automated testing.
Data Logging: 1,000 points with 15ms–9999s logging duration.
Compact & Lightweight: Only 450g, easy to carry and use.
Specifications:
Brand: OWON
Model: XDM2041
Country of Origin: China
Color: Grey
Display: 3.7-inch LCD, 480×320
Resolution: 55,000 counts
Weight: 450g
Dimensions: 29.5 × 23.5 × 11 cm
Power Source: Battery Powered
Measurement Ranges:
DC Voltage: 50mV, 500mV, 5V, 50V, 500V, 1000V
AC Voltage: 500mV – 750V
DC Current: 500µA, 5mA, 50mA, 500mA, 5A, 10A
AC Current: 500µA – 500mA, 5A – 10A
Resistance: 500Ω – 50MΩ
Four-Wire Resistance: 500Ω – 50kΩ
Frequency: 10Hz – 60MHz
Capacitance: 50nF – 50mF
Diode Test: Up to 3V
Continuity Test: 1000Ω
Temperature Measurement: K-type, PT100 sensors
Package Includes:
1 × OWON XDM2041 Digital Multimeter
1 × User Manual
1 × Test Lead Set
1 × Power Cable
