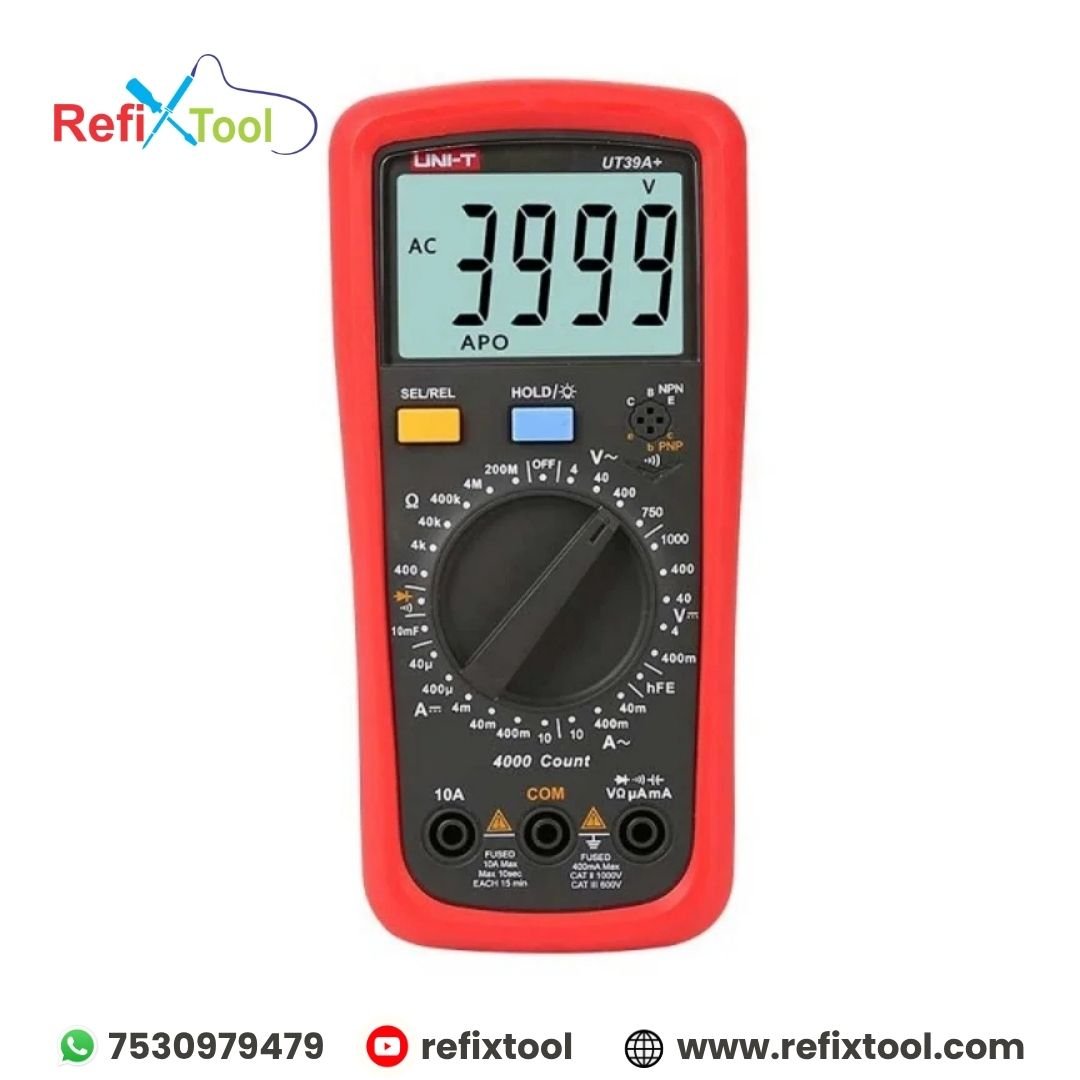

UNI-T UT39A+ Portable True RMS Digital Multimeter is a versatile and portable instrument designed for professionals and electronics enthusiasts. With its robust design and advanced features, this multimeter ensures accurate measurement of electrical parameters while prioritizing user safety. It is equipped with overvoltage and overcurrent alarm functions and high voltage protection to prevent misoperation, complying with CAT II 1000V / CAT III 600V safety standards.
Key Features:
Measures DC voltage up to 1000V and AC voltage up to 750V
Measures DC/AC current up to 10A
Tests resistance, capacitance, diode, and continuity
Measures transistor gain (hFE)
Overvoltage and overcurrent alarm for added safety
Auto power-off and backlight for convenience
Data hold and relative mode for easier readings
Large 4000-count display for clear and precise measurements
Compact, lightweight design for portable use
Specifications:
DC Voltage: 400.0mV – 1000V ±(0.5% – 0.7%)
AC Voltage: 4.000V – 750V ±(0.8% – 1.0%)
DC Current: 40.00μA – 10A ±(0.8% – 1.2%)
AC Current: 40.00mA – 10A ±(1.0% – 1.5%)
Resistance: 400.0Ω – 200MΩ ±(0.8% – 5%)
Capacitance: 4.000nF – 10.00mF ±(4% – 10%)
Display Count: 4000
Safety Rating: CAT II 1000V / CAT III 600V
Operating Temperature: 0℃ – 40℃
Product Weight: 330g
Product Size: 175 × 83 × 53mm
Color: Red & Grey
Packing Include:
1 × UNI-T UT39A+ Digital Multimeter
1 × Test Leads
1 × User Manual
