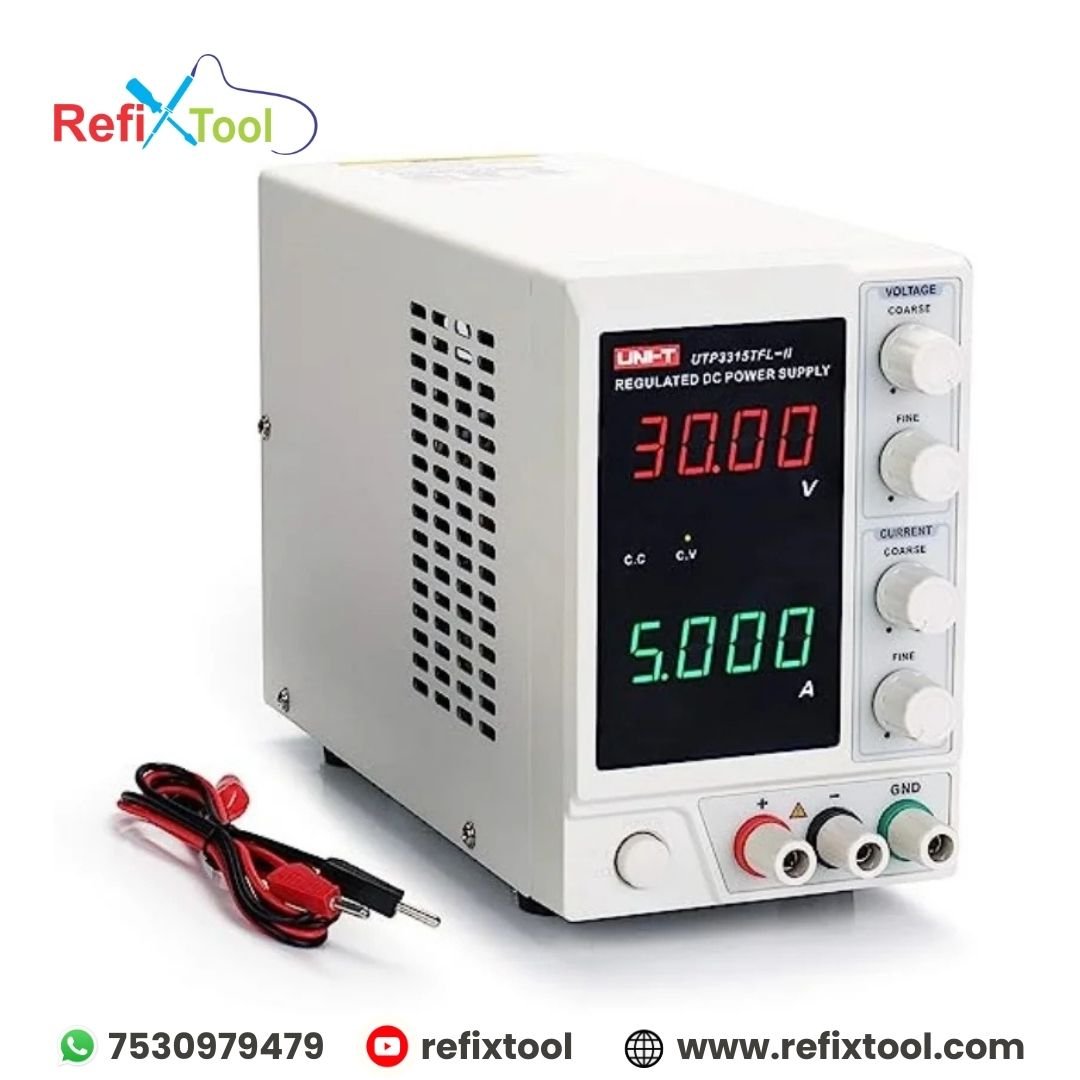

UNI-T UTP3315TFL-II- 30V 5A DC Power Supply

Out of stock
₹6,899.00 ₹7,849.00

UNI-T UTP3315TFL-II DC Power Supply a versatile and reliable instrument that ensures smooth operation and precise power output:

• Single-Channel Design: The UTP3315TFL-II features a single-channel configuration, providing a linear DC power supply with an LED display for convenient monitoring.

• Max Output: Capable of delivering a maximum output of 30V and 5A, this power supply meets the demands of various applications with ease.

• Wide Range Settings: With its broad range of output voltage and current settings, ranging from 0 to 30V and 0 to 5A respectively, it allows for flexible adjustments to suit specific tasks.

• Low Ripple Voltage: With a ripple voltage of less than 2mVrms, the UTP3315TFL-II ensures stable and precise power delivery, reducing interference during testing and powering sensitive devices.

• Safety Features: Equipped with current limit protection and short circuit protection, this power supply prioritizes safety, preventing potential damage to connected devices and circuits.

• User-Friendly and Affordable: The UTP3315TFL-II is designed to be user-friendly, offering hassle-free operation and reliable performance. Its affordability makes it an excellent choice for both professionals and enthusiasts.

In summary, the UNI-T UTP3315TFL-II DC Power Supply is a dependable tool for various power supply tasks. With its LED display, wide range settings, low ripple voltage, and safety features, it ensures precision and safety in powering and testing applications.


UNI-T UTP3315TFL-II- 30V 5A DC Power Supply Specification:

Model UTP3315TFL-II
Output voltage 0~30V
Output current 0~5A
Output power 150W
Load regulation CV≤0.01%+5mV, CC≤0.1%+10mA
Accuracy (25℃±5℃) Voltage 0.5%+20mV

Current 0.5%+10mA

Ripple and noise ≤2mVrms
Output regulation resolution CV: 10mV (typical), CC: 1mA (typical)
Reliability MTBF(e): ≥2000hrs
Display mode LED voltage and current dual display
Feature Auto conversion of constant voltage and current with current limit protection
Power Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz
Product color White and grey
Product net weight 4kg
Product size 105mm x 165mm x 249mm
Standard Accessories Power Cord, Output Cables
